SELECT A DIAGRAM

01 - Fresh Food Compartment

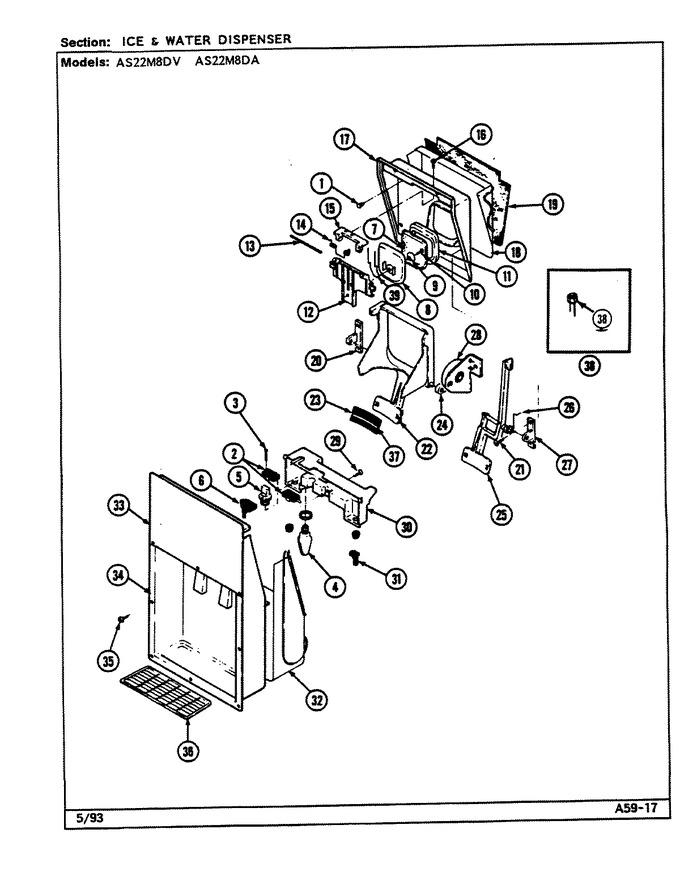

02 - Ice & Water Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	28272-6		Bumper, Door		Appelez-nous	-
2	55440-2		Switch, Ice & Water				$ 11.94
3	405071-1		Screw		Appelez-nous	-
4	W10857122		Bulb, Light   (Replaces: 63179-1)				$ 12.45
5	67293-1		Socket, Light (w/nut)		Appelez-nous	-
6	68491-1		Wire Harness, Switch		Appelez-nous	-
6	27116-2		Wire Nut		Appelez-nous	-
6	67340-1		Switch, Push		Appelez-nous	-
7	68557-1		Insulation, Ice Door		Appelez-nous	-
8	68565-1		Door, Ice		Appelez-nous	-
9	68566-1		Retainer		Appelez-nous	-
10	405116-103		Screw		Appelez-nous	-
11	68560-2		Seal		Appelez-nous	-
12	68563-1		Strike, Door		Appelez-nous	-
13	68564-1		Shaft		Appelez-nous	-
14	68765-1		Spring		Appelez-nous	-
15	68562-1		Bracket		Appelez-nous	-
16	405024-103		Screw		Appelez-nous	-
17	WP1163283		Screw   (Replaces: 405025-103)				$ 6.47
18	68936-1		Heater, Fountain		Appelez-nous	-
19	68714-1		Insulation, Foil		Appelez-nous	-
20	68627-1		Pivot, Actuator (lt)		Appelez-nous	-
21	405024-103		Screw		Appelez-nous	-
24	68764-1		Pivot, Actuator (center)		Appelez-nous	-
26	68767-1		Spring, Paddle Return		Appelez-nous	-
27	68628-1		Pivot, Actuator (rt)---na		Appelez-nous	-
28	WP1163283		Screw   (Replaces: 405025-103)				$ 6.47
28	68827-1		Motor, Inertia		Appelez-nous	-
29	WP1163283		Screw   (Replaces: 405025-103)				$ 6.47
30	68626-1		Bracket		Appelez-nous	-
31	68568-1		Plunger		Appelez-nous	-
32	68820-1		Heater Fountain		Appelez-nous	-
33	68625-1		Fountain Front		Appelez-nous	-
35	WP1163283		Screw   (Replaces: 405025-103)				$ 6.47
36	68631-1		Grill		Appelez-nous	-
37	68763-1		Trim, Paddle Pad				$ 5.04
39	WP2300868		Union, Reducing (5/16``-5/16``)   (Replaces: 68948-1)			Immediately	$ 26.15
39	69868-1		Spring, Ice Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
