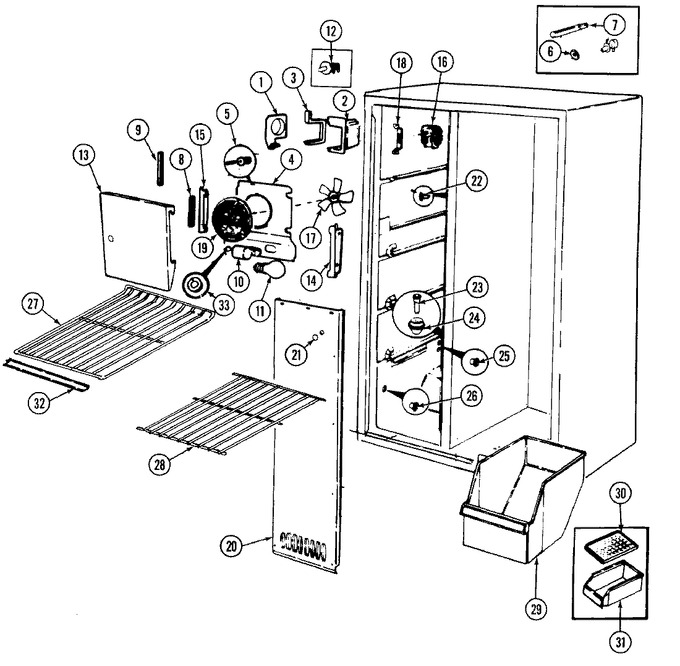

01 - Freezer Compartment
02 - Fresh Food Compartment
03 - Optional Ice Maker Kit
04 - Shelves & Accessories
05 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67352-1 | Orifice, Frz. Control (outlet) | 10 |
|
- | ||||
| 2 | 67353-1 | Shield, Air Directional | 10 |
|
- | ||||
| 3 | 52077-10 | Seal | 10 |
|
- | ||||
| 4 | 400015-12 | Screw | 10 |
|
- | ||||
| 4 | 67297-5 | Cover, Coil (upper) | 10 |
|
- | ||||
| 5 | 59920-1 | Stud, Mounting Coil Cover | 10 |
|
- | ||||
| 6 | 68187-1 | Cap, Connector | 10 |
|
- | ||||
| 7 | 68326-1 | Cap, Fill Tube | 10 |
|
- | ||||
| 7 | 68304-2 | Extension,grommet To Fill Tube | 10 |
|
- | ||||
| 8 | 68946-4 | Seal | 10 |
|
- | ||||
| 9 | 66325-21 | Seal (44``) | 10 |
|
- | ||||
| 10 | 68974-3 | Receptacle, Bulb | 10 |
|
- | ||||
| 11 | W11679940 | Bulb, Light (Replaces: 68123-1) | 10 |
|
Immediately | $ 10.17 | |||
| 12 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 13 | 67292-1 | Shield, Light | 10 |
|
- | ||||
| 14 | 67344-3 | Support, Light Shield | 10 |
|
- | ||||
| 15 | 54424-2 | Support | 10 |
|
- | ||||
| 16 | WP61004888 | Motor, Fan Evaporator (Replaces: 69298-1) | 10 |
|
Immediately | $ 104.99 | |||
| 17 | 52120-4 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 18 | 64856-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 19 | 62689-1 | Fan Grid | 10 |
|
- | ||||
| 19 | WP67006908 | Screw (Replaces: 400022-1) | 10 |
|
Immediately | $ 7.16 | |||
| 20 | 67562-1 | Coil Cover, Gasket | 10 |
|
- | ||||
| 20 | 67335-2 | Cover, Coil Lower | 10 |
|
- | ||||
| 21 | 495015-900 | Plug Button | 10 |
|
- | ||||
| 22 | 67557-1 | Plug Button | 10 |
|
- | ||||
| 23 | 26527-11 | Tube, Drain | 10 |
|
- | ||||
| 24 | 52526-1 | Grommet | 10 |
|
- | ||||
| 25 | 67685-1 | Retainer | 10 |
|
- | ||||
| 26 | 53727-1 | Retainer, Air Tunnel | 10 |
|
- | ||||
| 27 | 66603-37 | Shelf, 1 | 10 |
|
- | ||||
| 28 | 66603-42 | Shelf, 2,3, & 4 | 10 |
|
- | ||||
| 29 | 66636-98 | Drawer, Frz. | 10 |
|
- | ||||
| 30 | WP841180A | Tray, Ice (Replaces: 59281-2) | 10 |
|
Immediately | $ 41.00 | |||
| 31 | WP67001255 | Pan, Ice (Replaces: 68346-1) | 10 |
|
$ 182.77 | ||||
| 32 | 66649-4 | Trim, Shelf | 10 |
|
- | ||||
| 33 | 69219-1 | Grommet | 10 |
|
- | ||||
| 33 | 53933-1 | Plug | 10 |
|
- |
