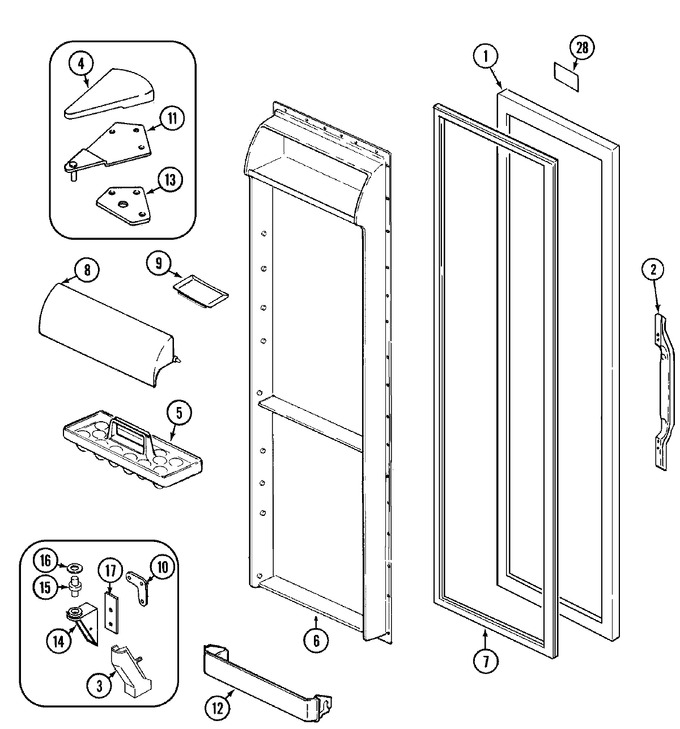

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72348-3-WW		Panel, F.f. Door (wht)	10	Appelez-nous	-
1	495034-900		Plug Button, Door	10	Appelez-nous	-
2	12000051		Kit, Handle Assy. (wht)	10	Appelez-nous	-
2	W10856122		Screw   (Replaces: 65275-80)	10			$ 6.98
3	68978-4		Cover, Lower Hinge (wht)	10	Appelez-nous	-
4	70121-4		Cover, Upper Hinge (wht)	10	Appelez-nous	-
5	60066-1		Tray, Egg	10	Appelez-nous	-
6	65275-5		Screw	10	Appelez-nous	-
6	69242-1		Liner, F.f. Door	10	Appelez-nous	-
7	70024-4		Gasket, F.f. Door (wht)	10			$ 184.29
8	69058-31		Door, Dairy	10	Appelez-nous	-
9	29936-2		Tray, Butter	10	Appelez-nous	-
10	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
10	65275-59		Screw	10	Appelez-nous	-
11	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
11	53709-18		Door Hinge, Upper	10	Appelez-nous	-
12	69871-8		Front, Pick-off	10	Appelez-nous	-
13	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
14	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
14	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
15	69845-1		Pin, Lower Hinge	10			$ 44.55
16	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
17	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
NI	66982-29		Nameplate (wht)	10	Appelez-nous	-
