01 - Cover Sheet
02 - Upper Cabinet/drum Heater

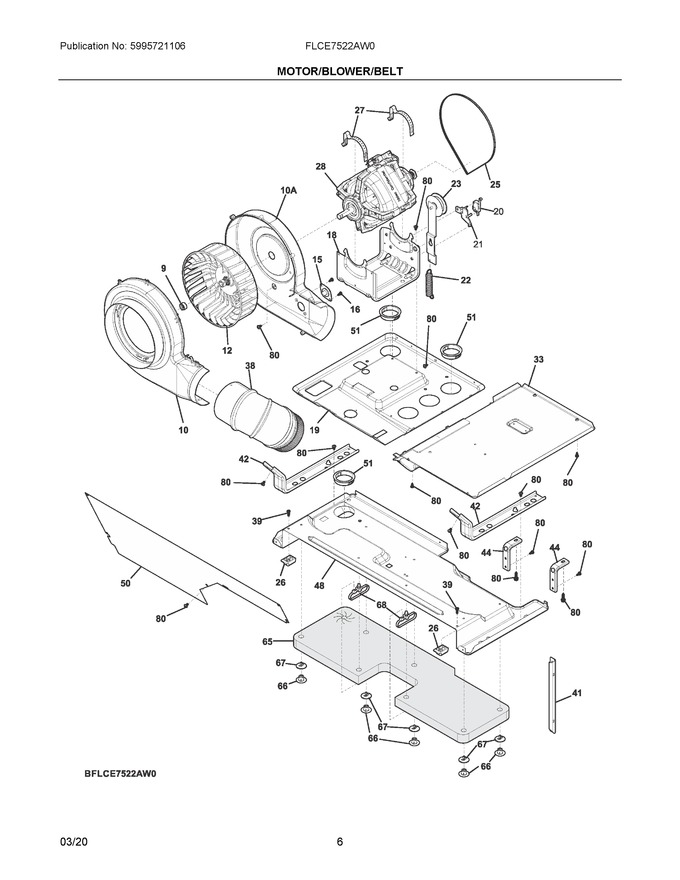

03 - Motor/blower/belt
04 - Control Panel
05 - Lower Cabinet/top
06 - Motor/tub
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 5304488479 | Clamp |
|
Immediately | $ 32.09 | ||||
| 10 | 5304523176 | Housing Assembly, Blower, Front, W/adaptor |
|
Immediately | $ 73.02 | ||||
| 12 | 131476300 | Blower Wheel |
|
Immediately | $ 47.00 | ||||
| 15 | 134587700 | Thermistor, Control |
|
Immediately | $ 56.39 | ||||
| 16 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.36 | |||||
| 18 | 131367110 | Cradle, Motor W/idler (Replaces: 131367100) |
|
$ 68.75 | |||||
| 19 | 137490900 | Pan, Upper Lc, Dryer, Formed |
|
- | |||||
| 20 | 5304521496 | Limit Switch, Dryer Belt |
|
$ 22.42 | |||||
| 21 | 5304521495 | Bracket, Limit Switch, Dryer Belt |
|
$ 10.85 | |||||
| 22 | 3205241 | Spring, Idler |
|
$ 75.83 | |||||
| 23 | 5304507499 | Idler Arm Assy, W/pulley & Clip |
|
Immediately | $ 42.66 | ||||
| 25 | 137292700 | Belt, Dryer, Lc |
|
Immediately | $ 9.34 | ||||
| 26 | 137511300 | Block, Support |
|
- | |||||
| 27 | 134242400 | Clamp, Motor Mtg. |
|
Immediately | $ 35.76 | ||||
| 28 | 134196602 | Motor, Dryer Drive, With Pulley |
|
Immediately | $ 252.08 | ||||
| 33 | 5304515828 | Baffle, Assembly, W/felt Seal |
|
- | |||||
| 36 | 5304524452 | Pump Assembly, Washer |
|
Immediately | $ 183.11 | ||||
| 38 | 5304521383 | Elbow, Exhaust Duct |
|
$ 45.36 | |||||
| 39 | 131205100 | Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 41 | 131091300 | Bracket, Support, Side |
|
- | |||||
| 42 | 137304710 | Bracket, Marriage, Dryer |
|
- | |||||
| 44 | 3204326 | Bracket, L Mounting, Cabinet Rear, External |
|
$ 43.24 | |||||
| 48 | 137329111 | Pan, Bottom Lc Dryer |
|
- | |||||
| 50 | 5304524542 | Cover Lc Dryer, Support |
|
- | |||||
| 51 | 131453000 | Bushing, Snap-in |
|
$ 10.63 | |||||
| 65 | 5304524477 | Sound Insulator, Pack, Top |
|
- | |||||
| 66 | 5304524483 | Clip Rivet, Female |
|
- | |||||
| 67 | 5304524484 | Clip Rivet, Male |
|
- | |||||
| 68 | 5304524498 | Zip Tie, (2) |
|
- | |||||
| 80 | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 10A | 137551800 | Housing, Blower, Rear |
|
Immediately | $ 107.00 | ||||
| NI | 134402900 | Screw, Phillips, 6-19 X 0.650 |
|
$ 29.77 | |||||
| NIA | 5304523159 | Wiring Harness, Main, Dryer |
|
Immediately | $ 188.40 | ||||
| NIA | 137212300 | Gasket, 152 X 13 X 3 Mm |
|
- |
