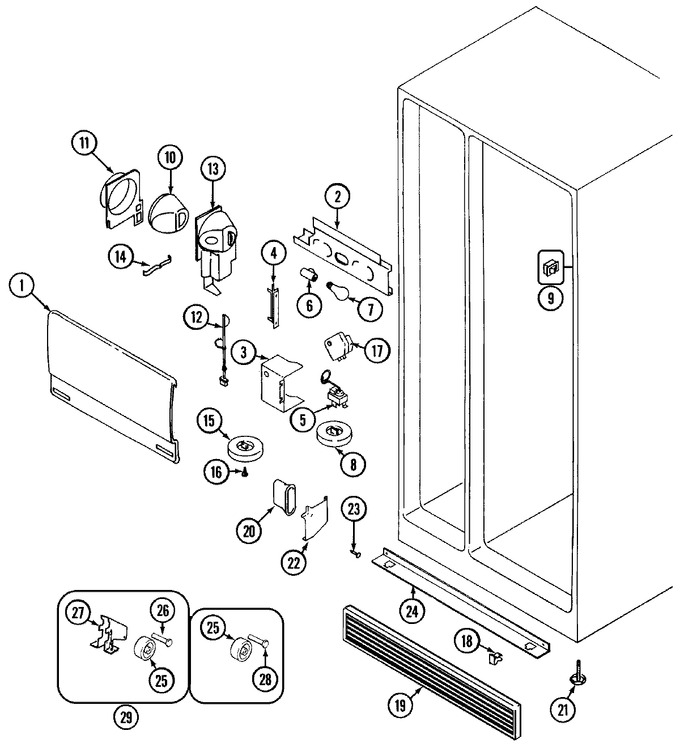

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69194-2 | Shield, Light Ref | 10 |
|
- | ||||
| 2 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 2 | 69193-2 | Housing, Lite & Wire | 10 |
|
- | ||||
| 3 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 3 | 70178-1 | Housing, Temperature Control | 10 |
|
- | ||||
| 4 | 67125-1 | Support, Light Shield | 10 |
|
- | ||||
| 5 | WP61001673 | Control, Temperature (Replaces: 69694-3) | 10 |
|
Immediately | $ 144.29 | |||
| 5 | WP489399 | Screw (Replaces: 401024-1) | 10 |
|
$ 6.26 | ||||
| 6 | 68974-3 | Receptacle, Bulb | 10 |
|
- | ||||
| 7 | W10887190 | Bulb, Light (60w) (Replaces: 55771-2) | 10 |
|
Immediately | $ 16.48 | |||
| 8 | 29893-7 | Knob, Temp. Control | 10 |
|
- | ||||
| 9 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 10 | 58767-1 | Insulation, Housing | 10 |
|
- | ||||
| 11 | 67351-1 | Orifice, Frz. Control (inlet) | 10 |
|
- | ||||
| 12 | 67609-1 | Damper, Frz. Control | 10 |
|
- | ||||
| 13 | 415017-1 | Screw | 10 |
|
- | ||||
| 13 | 67354-1 | Housing, Frz. Control | 10 |
|
- | ||||
| 14 | 52648-1 | Spring, Baffle | 10 |
|
- | ||||
| 15 | 29893-12 | Knob | 10 |
|
- | ||||
| 16 | 400001-1 | Screw | 10 |
|
- | ||||
| 17 | 405007-1 | Screw | 10 |
|
- | ||||
| 17 | WP68233-3 | Timer, Defrost (Replaces: 68233-3) | 10 |
|
Immediately | $ 139.32 | |||
| 18 | 60100-1 | Clip, Kickplate | 10 |
|
$ 5.85 | ||||
| 18 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 19 | 68981-5 | Kickplate | 10 |
|
- | ||||
| 20 | 67684-1 | Tunnel, Air Return | 10 |
|
- | ||||
| 21 | W11117769 | Leg, Leveling (Replaces: 68664-1) | 10 |
|
Immediately | $ 16.61 | |||
| 22 | 69982-1 | Cover, Air Return | 10 |
|
- | ||||
| 23 | 28013-2 | Rivet, Air Tunnel | 10 |
|
- | ||||
| 24 | 61001031 | Rail, Horizontal Support | 10 |
|
- | ||||
| 24 | 3400518 | Screw (Replaces: 65275-42) | 10 |
|
$ 11.68 | ||||
| 25 | 69812-1 | Wheel | 10 |
|
- | ||||
| 26 | 64965-1 | Pin, Wheel | 10 |
|
- | ||||
| 27 | 400062-1 | Screw | 10 |
|
- | ||||
| 27 | 52846-1 | Bracket | 10 |
|
- | ||||
| 28 | 64965-3 | Pin, Wheel (rear) | 10 |
|
- | ||||
| 29 | 72019-1 | Wheel Assy. (front) | 10 |
|
- |
