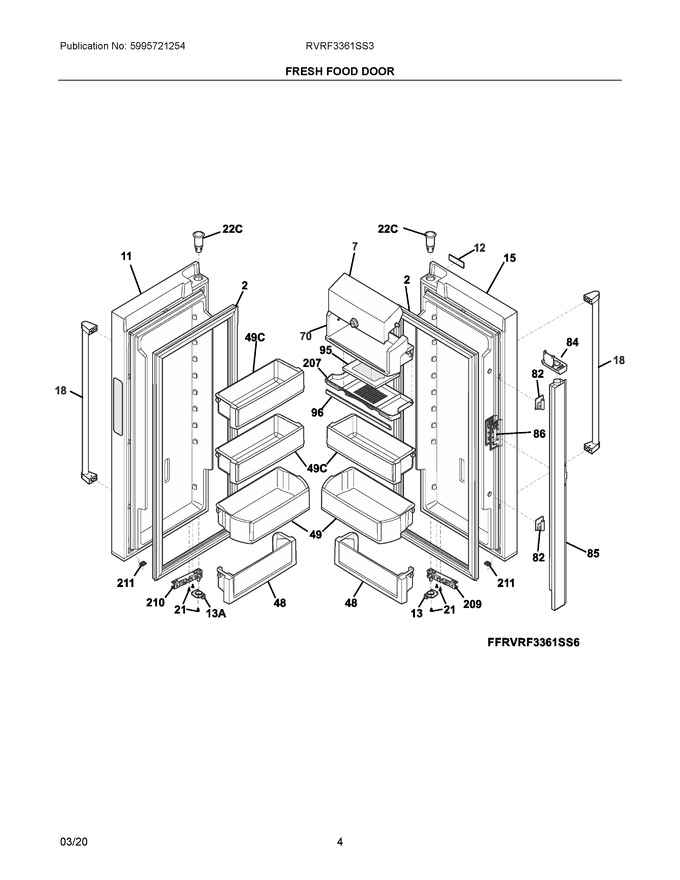

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-refr Door, Gray, Magnetic (Replaces: 241778307) |
|
Immediately | $ 89.88 | ||||
| 7 | 241895805 | Door-dairy (Replaces: 241804701) |
|
$ 104.18 | |||||
| 11 | 807460145 | Refrigerator Door, Complete, Stainless, Lh |
|
- | |||||
| 12 | 5304501768 | Nameplate, Viking |
|
- | |||||
| 13 | 5304508039 | Door Stop, Assembly, Rh, W/bushing |
|
$ 22.81 | |||||
| 15 | 807460144 | Refrigerator Door, Complete, Stainless, Rh |
|
- | |||||
| 18 | 5304501868 | Handle Assembly, Ff Door, Stainless, W/endcaps |
|
- | |||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 48 | 241804303 | Bin-door, Can |
|
$ 93.38 | |||||
| 49 | 241804006 | Bin-door, Gallon |
|
$ 110.61 | |||||
| 70 | 241804604 | Compartment-dairy, Removable |
|
- | |||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 21.99 | ||||
| 84 | 808274201 | Guide-mullion, Magnet Cover, Flipper |
|
Immediately | $ 36.41 | ||||
| 85 | 242036309 | Flipper Mullion Assembly, Black, W/heater (Replaces: 242036306) |
|
Immediately | $ 188.25 | ||||
| 86 | 241779802 | Hinge-mullion, Center, Flipper |
|
Immediately | $ 36.73 | ||||
| 95 | 242047803 | Filter, Air |
|
- | |||||
| 96 | 242048006 | Trim-door Air Filter, W/graphics (Replaces: 242048007) |
|
$ 16.69 | |||||
| 207 | 242047901 | Housing-air Filter |
|
$ 80.39 | |||||
| 209 | 5304526201 | Closer Assembly, Door, Rh, Mechanical (Replaces: 5304508014) |
|
Immediately | $ 84.92 | ||||
| 210 | 5304526202 | Closer Assembly, Door, Lh, Mechanical (Replaces: 5304508015) |
|
Immediately | $ 98.34 | ||||
| 211 | 5304508077 | Bumper, Door, Bottom |
|
$ 12.13 | |||||
| 13A | 5304508038 | Door Stop, Assembly, Lh, W/bushing |
|
Immediately | $ 22.75 | ||||
| 22C | 241760401 | Bearing, Hinge, Top |
|
Immediately | $ 19.13 | ||||
| 49C | 241896103 | Bin-door, 1/2 Gallon |
|
$ 97.67 | |||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NIA | 241995401 | Divider-dairy Compt, 70* |
|
$ 19.13 | |||||
| NIA | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| NIA | 5304504001 | Standoff-stud, Handle Mtg., On Door |
|
- | |||||
| NIA | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NIA | 242045402 | Harness-wiring, Door |
|
$ 62.37 | |||||
| NIA | 5304453707 | Screw (Replaces: 241641501) |
|
Immediately | $ 15.92 | ||||
| NIB | 241836301 | Knob-dairy Door |
|
$ 38.98 | |||||
| NIB | 5304508776 | Lock Washer, External Tooth, #8 |
|
$ 4.35 | |||||
| NIB | 242068601 | Bumper, Flipper Mullion |
|
$ 14.41 | |||||
| NIC | 241836401 | Latch-door |
|
$ 18.43 | |||||
| NIC | 5304520993 | Harness-wiring, Flipper Mullion (Replaces: 241788401) |
|
Immediately | $ 41.97 |
