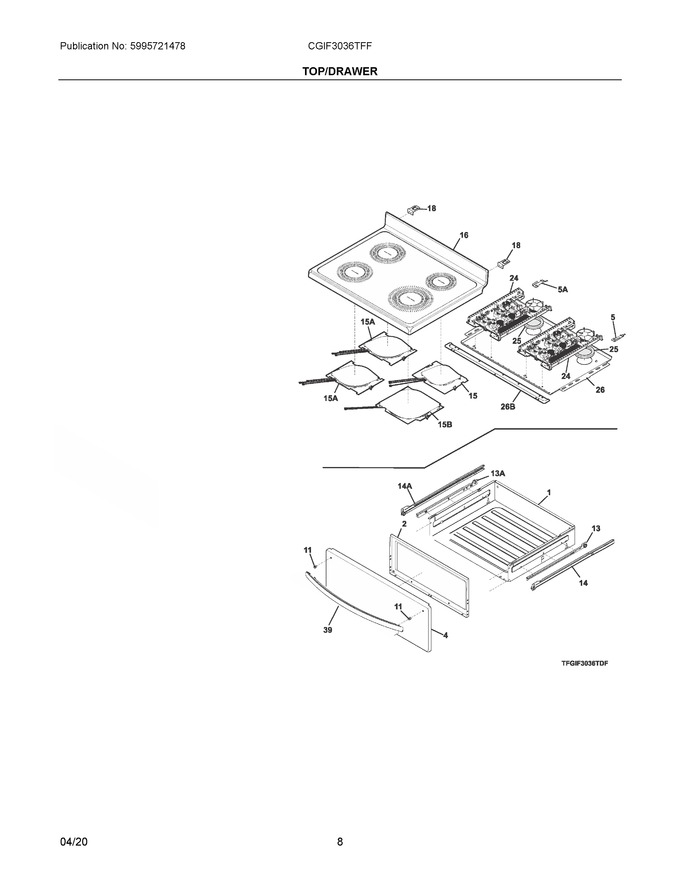

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304511827		Liner, Drawer		Appelez-nous	-
4	5304518011		Panel, Drawer, Stainless			Immediately	$ 160.88
5	5304511076		Bracket, Cooktop, Rh Rear		Appelez-nous	-
11	5304517906		Bracket, Rear Support, (2)				$ 11.38
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 16.69
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 25.79
15	387404760		Element Assembly, Induction Coil, 140mm, Rh Rear   (Replaces: 387404759)			Immediately	$ 86.82
16	5304511258		Smoothtop Assembly, Glass, Black				$ 571.81
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
24	5304531890		Generator Assembly, Circuit Board   (Replaces: 5304516063)			Immediately	$ 158.86
25	316302203		Seals, Ring, Fans, (2)				$ 20.58
26	5304511074		Panel, Induction Mtg.				$ 49.66
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554008)			Immediately	$ 168.44
60	5303288572		Screw-handle Mtg		Appelez-nous	-
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 28.97
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 47.98
15A	387404870		Element Assembly, Induction Coil, 180mm, Lh Rear/front   (Replaces: 387404866)			Immediately	$ 84.96
15B	387761249		Element Assembly, Induction Coil, 210mm, Rh Front   (Replaces: 387761248)			Immediately	$ 106.18
26B	316607600		Bracket, Chassis Support, Front				$ 52.33
5A	5304511075		Bracket, Cooktop, Lh Rear				$ 4.26
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304517544		Harness, Communication				$ 44.64
NI	5304517540		Harness, Wiring, Surface				$ 62.34
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
