SELECT A DIAGRAM

01 - Cover Sheet

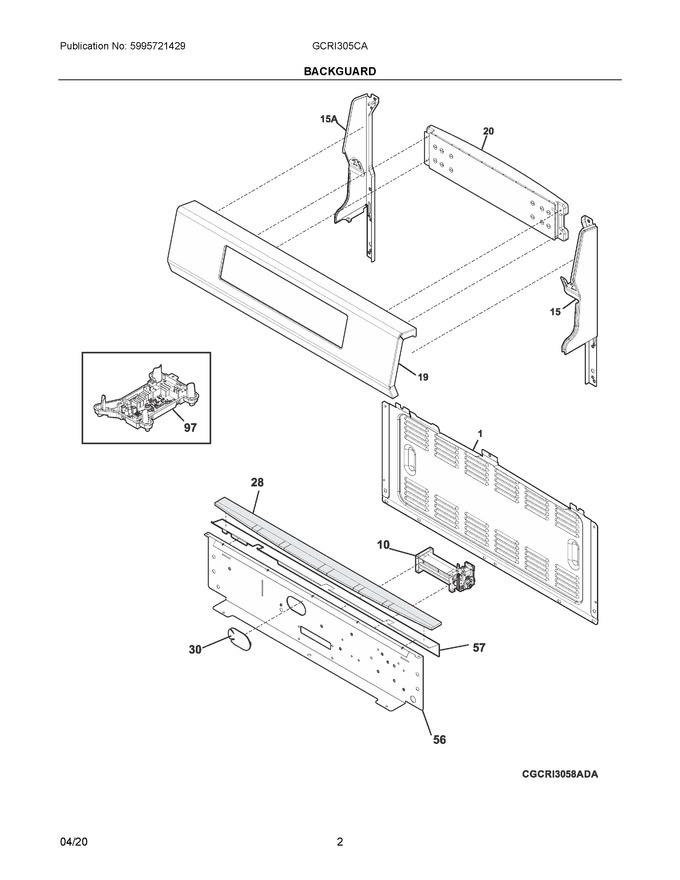

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall				$ 57.64
2	5304521812		Generator Board, Power, Induction			Immediately	$ 337.82
10	5304511092		Fan Assembly, Blower, Condensation			Immediately	$ 263.15
15	5304493644		Cap, End, Black, Rh				$ 66.74
19	5304524904		Panel, Control, Stainless, Backguard, W/clck Brackets				$ 210.92
20	5304524907		Control, W/overlay, Black, Es502i			Immediately	$ 402.17
28	316528701		Insulation, Manifold Panel		Appelez-nous	-
30	316577600		Plug, Button, Oval, Harness				$ 14.89
56	316234048		Shield, Backguard, White, Inner		Appelez-nous	-
57	808950203		Shield, Steam				$ 12.89
97	5304516862		Board, Pc, Oven Relay			Immediately	$ 330.67
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 66.74
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304522699		Harness, Communication				$ 30.34
NI	5304519440		Harness, Wiring, Induction, W/ferrite Core				$ 35.65
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304522701		Harness, Low Voltage				$ 49.29
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	318165800		Spacer, Glass, Foam				$ 17.72
