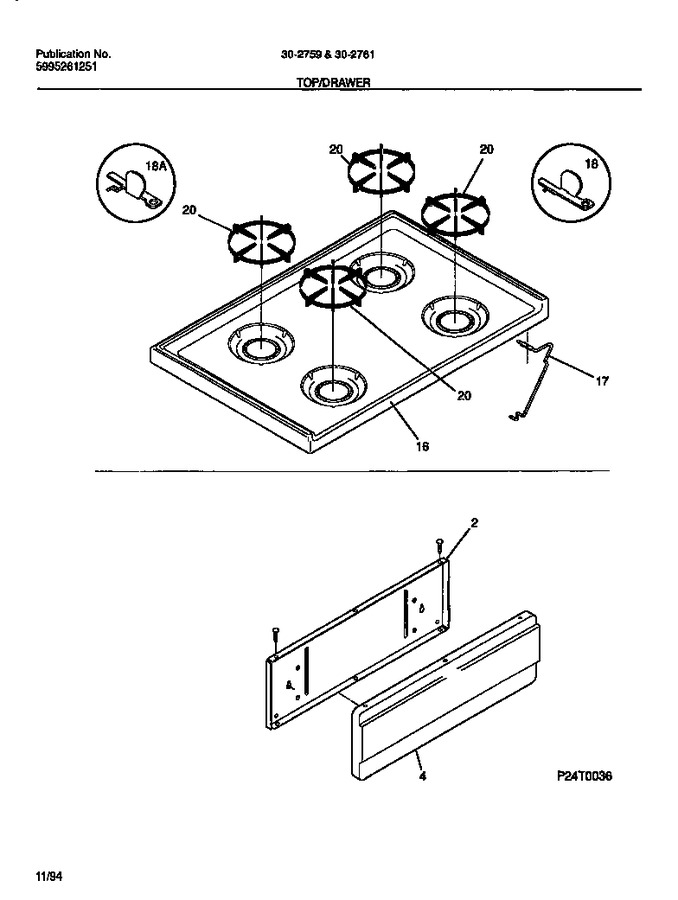

02 - Backguard
03 - Burner
04 - Body
06 - Top/drawer
08 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 4 | 3051201 | Panel-dummy, White |
|
- | |||||
| 4 | 08067785 | Screw, Hex Washer Head, 8, 18(ab) X 1/2 (non-illustrat |
|
- | |||||
| 4 | 3200612 | Spacer, Panel/shield (non-illustrated) |
|
- | |||||
| 16 | 3200657 | Main Top, White |
|
- | |||||
| 17 | 316066900 | Rod-maintop Support |
|
$ 66.31 | |||||
| 18 | 08067747 | Bracket-hinge,main Top Rh |
|
- | |||||
| 20 | 316055800 | Grate, (4) |
|
$ 43.99 | |||||
| *17285 | 3017527 | Foil-aluminum |
|
- | |||||
| *17286 | 3018702 | Plug-button,glide ,(4) |
|
- | |||||
| *17287 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| 18A | 08067746 | Bracket-hinge,main Top Lh |
|
- |
