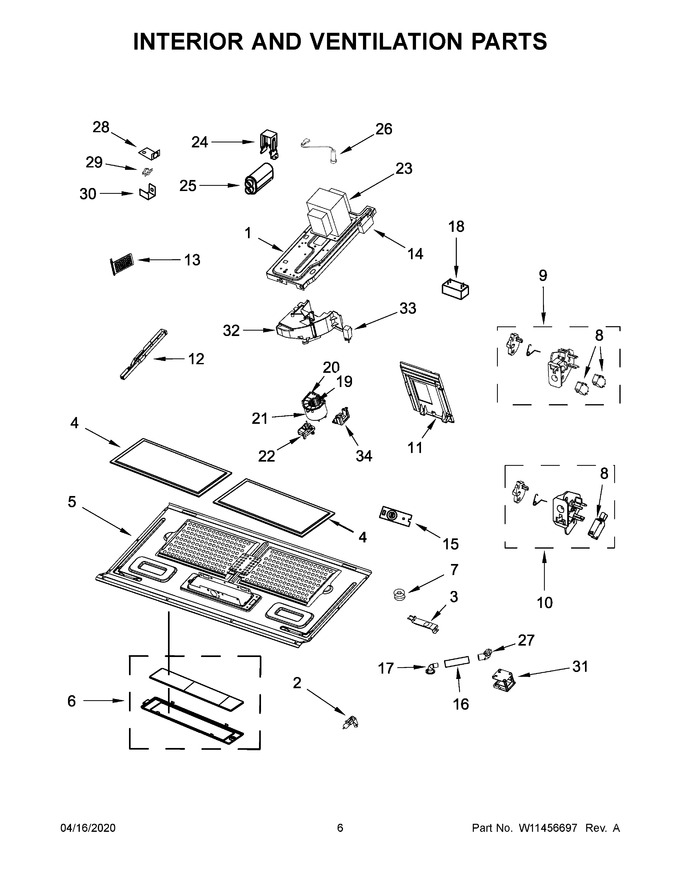

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10908578 | Chassis |
|
- | |||||
| 2 | W10709921 | Lamp, Halogen |
|
Immediately | $ 19.10 | ||||
| 3 | W10525853 | Bracket, Smart Pop |
|
- | |||||
| 4 | W10535950 | Filter, Grease |
|
Immediately | $ 27.90 | ||||
| 5 | W10571126 | Plate, Bottom |
|
$ 82.10 | |||||
| 6 | W10240330 | Assembly, Lamp Glass And Holder |
|
$ 6.47 | |||||
| 7 | W10510237 | Spacer, Smart Pop |
|
- | |||||
| 8 | N/P | Switches, Interlock (not Serviced, Order Interlock Assemblies) |
|
- | |||||
| 9 | W11192678 | Assembly, Upper Interlock (includes Switches) (Replaces: W11169313) |
|
Immediately | $ 30.94 | ||||
| 10 | W11192679 | Assembly, Lower Interlock (includes Switches) (Replaces: W11169315) |
|
Immediately | $ 21.70 | ||||
| 11 | W10533107 | Deflector, Air |
|
- | |||||
| 12 | W10540718 | Bracket, Cavity |
|
$ 27.95 | |||||
| 13 | W10533486 | Valve, Door |
|
- | |||||
| 14 | W11405831 | Capacitor, Hood Motor (Replaces: W10605897) |
|
$ 38.03 | |||||
| 15 | W10536989 | Thermistor, Pcba |
|
Immediately | $ 33.16 | ||||
| 16 | W10510235 | Tube, Smart Pop Sound |
|
$ 20.55 | |||||
| 17 | W10510234 | Terminal, Smart Pop |
|
$ 20.15 | |||||
| 18 | W11259891 | Resistor, Cement |
|
- | |||||
| 19 | W10533503 | Wheel, Cooling Fan |
|
$ 29.26 | |||||
| 20 | W10533502 | Cover, Cooling Fan |
|
$ 22.71 | |||||
| 21 | W10533501 | Housing, Cooling Fan |
|
Immediately | $ 27.22 | ||||
| 22 | W11230994 | Motor, Cooling Fan (Replaces: W11169357) |
|
Immediately | $ 172.40 | ||||
| 23 | W11371718 | Transformer, High Voltage (Replaces: W11087316) |
|
$ 321.43 | |||||
| 24 | W10633730 | Bracket, Capacitor |
|
- | |||||
| 25 | W11846984 | Capacitor, High Voltage (Replaces: W10345331) |
|
- | |||||
| 26 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 29.88 | ||||
| 27 | W10510233 | Terminal, Pcba Smart Pop |
|
$ 20.17 | |||||
| 28 | W10259248 | Cover, Thermostat |
|
- | |||||
| 29 | W11268275 | Thermostat, Convection |
|
$ 74.98 | |||||
| 30 | 8206223 | Clip |
|
$ 46.72 | |||||
| 31 | W11416049 | Pcba, Smart Pop (Replaces: W11381433) |
|
$ 237.65 | |||||
| 32 | W10631701 | Air Guide, Magnetron |
|
$ 105.85 | |||||
| 33 | W10458325 | Actuator |
|
$ 83.50 | |||||
| 34 | W10533480 | Holder, Ntc |
|
$ 21.23 |
