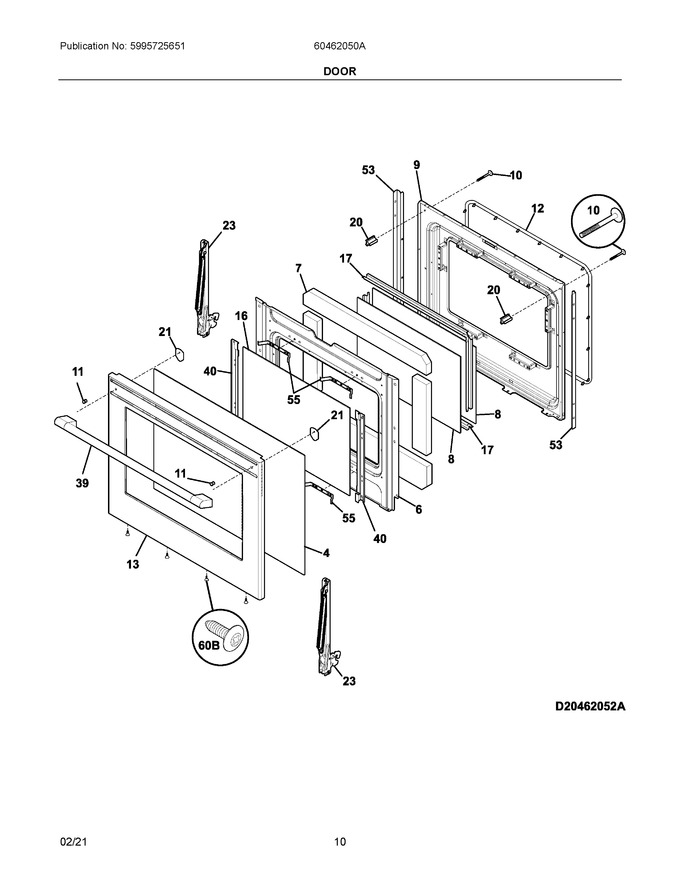

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452758		Glass, Oven Door, Black, W/foil			Immediately	$ 213.87
6	316406328		Shield-wool   (Replaces: 316406312)				$ 87.21
7	316405600		Insulation, Oven Door				$ 76.55
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	5304529999		Liner, Oven Door   (Replaces: 316423707)				$ 147.12
10	5304507924		Screw, Handle Mtg., #10-24 X 2, (2)   (Replaces: 316439505)			Immediately	$ 16.48
11	5304494420		Nut, Hour Glass, Handle Mtg.				$ 12.76
12	316405000		Seal, Oven Door			Immediately	$ 179.17
13	5304532516		Panel, Oven Door, Black Stainless, Outer   (Replaces: 316603904)				$ 143.33
16	316552801		Glass, Door, Airwash				$ 37.93
17	5304504811		Spacer, Glass			Immediately	$ 25.02
20	316284100		Spacer, Door Handle, (2)				$ 14.89
21	316533801		Plate, Distribution, Load			Immediately	$ 5.67
23	316575911		Hinge, Oven Door, Brown				$ 103.14
39	5304525008		Handle, Black Stainless				$ 206.24
40	316552401		Bracket, Airwash Glass, (2)				$ 28.83
53	5304532042		Shield, Door Filler, Black, (2)   (Replaces: 316408201)				$ 25.79
55	316408300		Bracket, Glass Support, (4)				$ 21.23
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304414648		Screw, Handle Set				$ 14.18
NI	241701902		Screwdriver, Hex, 3/32", Ball Driver				$ 19.85
NI	5304508804		Touch Up Paint, Pen, Black Stainless		Appelez-nous	-
NI	316483102		Label, Anti-tip				$ 3.56
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
