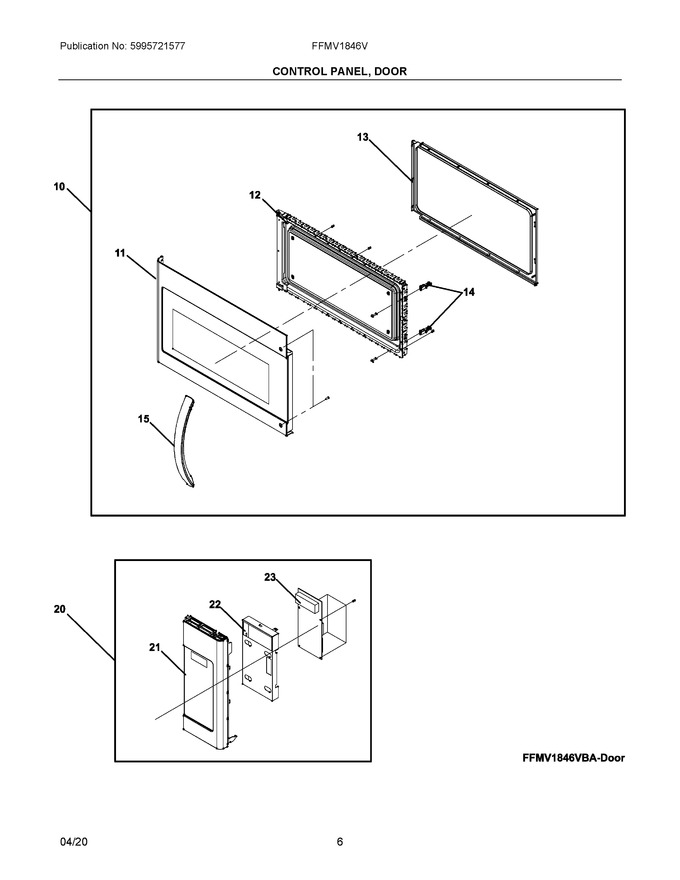

03 - Control Panel, Door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304523979		Door Assembly, Complete, Black Stainless				$ 473.32
11	5304523980		Door Assembly, Outer, Black Stainless				$ 273.27
12	5304523969		Frame, Door, Black			Immediately	$ 115.67
13	5304523970		Gasket, Door				$ 77.40
14	5304523249		Latch, Door				$ 8.77
15	5304523981		Handle, Door, Black Stainless				$ 219.20
20	5304523982		Control Panel, Assembly, Black Stainless				$ 362.55
21	5304523983		Control Panel, Outer, Black Stainless, W/touch Pad		Appelez-nous	-
22	5304523973		Shield, Pc Board				$ 29.65
23	5304523974		Pc Board, Assembly, Control				$ 385.33
