SELECT A DIAGRAM

01 - Cover Sheet

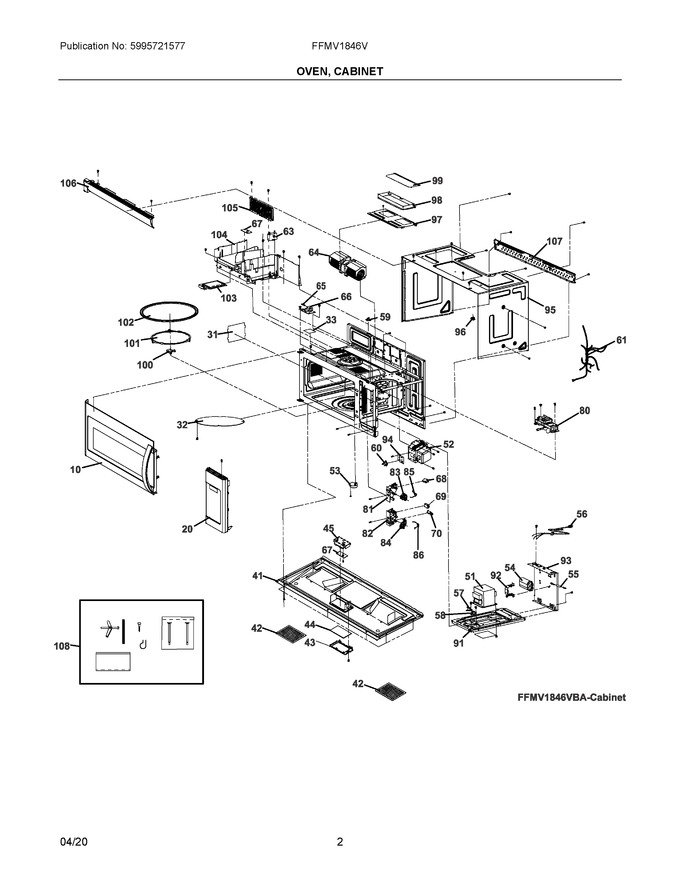

02 - Oven, Cabinet


03 - Control Panel, Door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304523995		Door Assembly, Complete, White				$ 354.23
20	5304523998		Control Panel, Assembly, White, Complete				$ 318.66
31	5304523276		Cover, Wave Guide			Immediately	$ 12.02
32	5304523277		Cover, Stirrer				$ 14.46
33	5304509455		Tape, Lamp		Appelez-nous	-
41	5304509417		Base, Unit Chassis				$ 209.65
42	5304517871		Filter, Grease			Immediately	$ 26.91
43	5304509441		Frame, Lens Holder		Appelez-nous	-
44	5304509443		Lens, Cooktop Lamp, Glass		Appelez-nous	-
45	5304509442		Cover, Lamp				$ 59.09
51	5304523975		Transformer, High Voltage			Immediately	$ 326.57
52	5304509470		Magnetron, High Voltage			Immediately	$ 436.17
53	5304513471		Motor, Turntable			Immediately	$ 92.20
54	5304509478		Capacitor, High Voltage			Immediately	$ 153.84
55	5304515185		Diode, High Voltage			Immediately	$ 25.83
56	5304512501		Power Cord, Electric				$ 106.27
57	5304513462		Thermostat, 120/0 *v			Immediately	$ 25.54
58	5304513463		Thermostat, 70/40 *v			Immediately	$ 26.99
59	5304515178		Thermostat, Cutout, Oven Cavity			Immediately	$ 28.53
60	5304513461		Thermostat, 160/95 *v			Immediately	$ 26.95
61	5304523976		Harness, Wiring, Main				$ 113.26
63	5304509453		Capacitor, Start				$ 141.75
64	5304509624		Motor, Vent				$ 425.32
65	5304517874		Fuse, Noise Filter			Immediately	$ 12.75
66	5304525109		Filter, Noise, Electronic   (Replaces: 5304512523)				$ 86.00
67	5304517872		Lamp, Led			Immediately	$ 44.24
68	5304509460		Switch, Interlock, Primary			Immediately	$ 45.27
69	5304520021		Microswitch, Monitor			Immediately	$ 16.68
70	5304509460		Microswitch, Secondary   (Replaces: 5304520020)			Immediately	$ 45.27
80	5304523281		Cooling Fan, Assembly				$ 98.42
81	5304523259		Bracket, Interlock, Upper			Immediately	$ 18.56
82	5304523260		Bracket, Interlock, Lower			Immediately	$ 18.56
83	5304523261		Lever, Interlock, Upper				$ 8.10
84	5304523262		Lever, Interlock, Lower				$ 7.96
85	5304523263		Spring, Interlock, Upper				$ 7.96
86	5304523264		Spring, Interlock, Lower				$ 7.96
91	5304523282		Base, Transformer		Appelez-nous	-
92	5304509477		Retainer, Capacitor Strap		Appelez-nous	-
93	5304523283		Deflector, Air Guide		Appelez-nous	-
94	5304515183		Thermostat			Immediately	$ 29.59
95	5304524000		Wrapper, Outer Cabinet, White		Appelez-nous	-
96	5304509436		Mounting Nut Kit			Immediately	$ 14.71
97	5304513481		Cover, Vent Motor				$ 51.38
98	5304509485		Adapter, Exhaust, Damper Frame			Immediately	$ 25.32
99	5304509486		Damper, Door, Exhaust Adapter			Immediately	$ 27.73
100	5304513472		Coupler, Turn Table			Immediately	$ 19.76
101	5304509438		Support, Turntable Ring				$ 52.20
102	5304509621		Tray, Turntable				$ 154.61
103	5304509450		Cover, Lamp, Oven Cavity				$ 18.62
104	5304523977		Air Duct, Assembly, Upper		Appelez-nous	-
105	5304509456		Cover, Control Shield, Right				$ 19.52
106	5304509612		Vent, White, Front				$ 132.92
107	5304509487		Plate, Wall Mounting, Rear			Immediately	$ 59.63
108	5304513469		Mounting Kit, W/templates			Immediately	$ 62.38

    View Diagram in Separate Window       Print Part List
