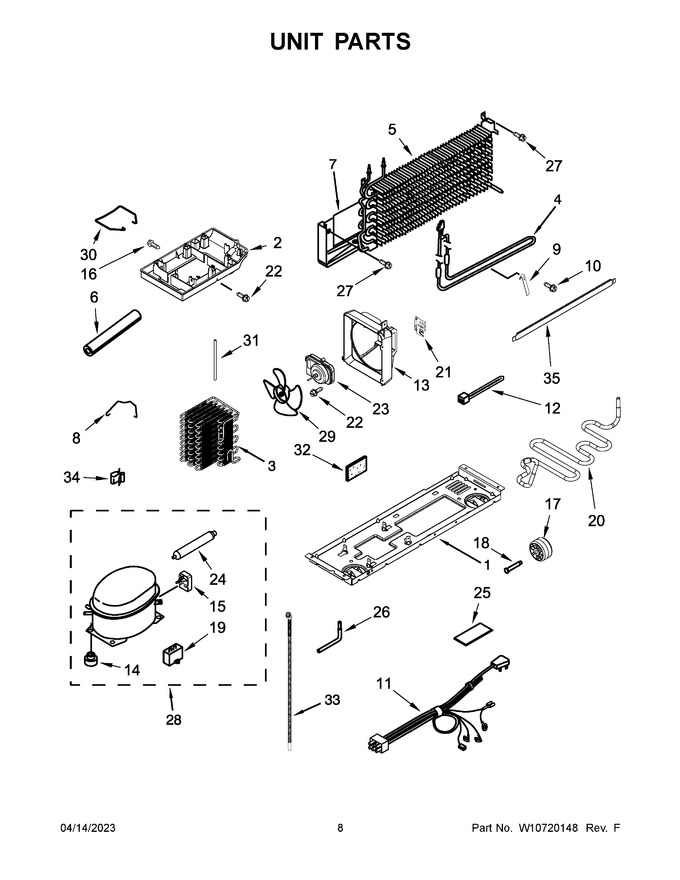

05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10573847 | Support Plate, Compressor |
|
Immediately | $ 127.42 | ||||
| 2 | W10565417 | Tray, Evaporator |
|
$ 32.88 | |||||
| 3 | W11685315 | Condenser (Replaces: W10487115) |
|
Immediately | $ 87.06 | ||||
| 4 | W11220371 | Heater, Defrost (Replaces: W10570573) |
|
$ 130.13 | |||||
| 5 | W10836706 | Assembly, Evaporator (Replaces: W10570565) |
|
Immediately | $ 258.64 | ||||
| 6 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 18.27 | ||||
| 7 | W10570572 | Shield, Heat |
|
$ 28.11 | |||||
| 8 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 10.17 | ||||
| 9 | W11807361 | Heat Probe (Replaces: 2258429) |
|
$ 17.24 | |||||
| 10 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 11 | W11241362 | Harness, Unit |
|
$ 118.75 | |||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.11 | |||||
| 13 | WPW10570380 | Scroll, Fan (Replaces: W10570380) |
|
$ 68.36 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 6.47 | ||||
| 15 | WPW10448874 | Device, Start (Replaces: W10448874) |
|
Immediately | $ 122.47 | ||||
| 16 | WP489489 | Screw (Replaces: 2264841) |
|
$ 5.82 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 6.47 | |||||
| 19 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 52.97 | ||||
| 20 | W11722672 | Assembly, Precooler (Replaces: W10727428) |
|
$ 240.21 | |||||
| 21 | W10314197 | Bracket, Evaporator |
|
$ 20.09 | |||||
| 22 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 9.95 | ||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 166.55 | ||||
| 24 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 47.31 | ||||
| 25 | 2266360 | Shield, Electrical |
|
- | |||||
| 26 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 26.11 | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 28 | W10233960 | Compressor (Replaces: W10575980) |
|
Immediately | $ 462.29 | ||||
| 29 | W11204896 | Blade, Fan (Replaces: W10675036) |
|
$ 87.25 | |||||
| 30 | 2264835 | Clip, Condenser |
|
- | |||||
| 31 | W10582029 | Extension, Drain Tube |
|
- | |||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 33 | W10286975 | Tube, Drain |
|
$ 26.10 | |||||
| 34 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 35 | W10300902 | Cover, Heater |
|
$ 25.34 | |||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 115.28 | ||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 117.64 | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 82.22 |
