New Model Search:

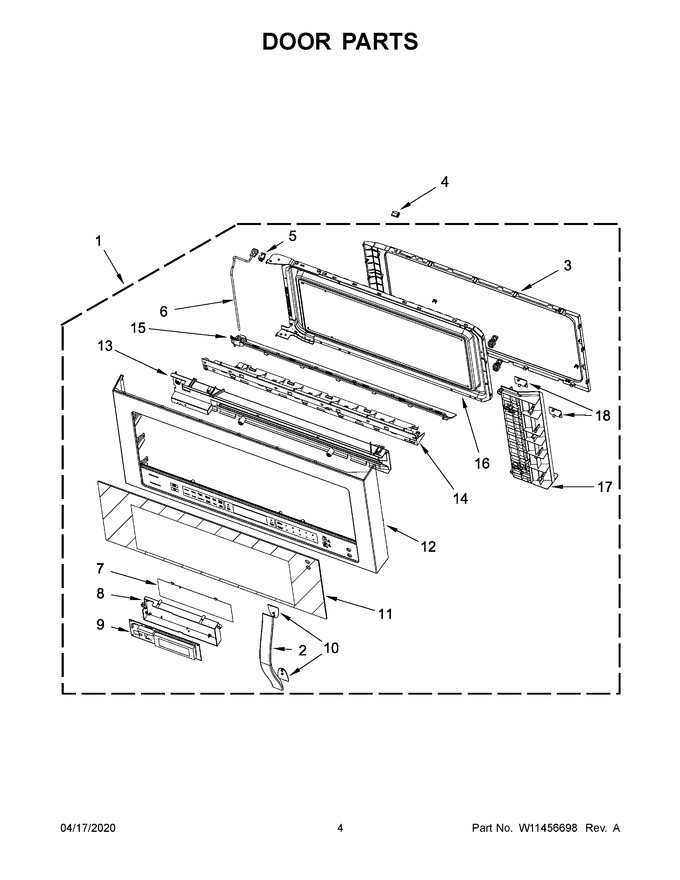

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10893444 | Door, Complete (stainless) |
|
- | |||||
| 2 | W10478162 | Handle (stainless) |
|
- | |||||
| 3 | W10648086 | Frame, Inner |
|
$ 86.25 | |||||
| 4 | W10643448 | Stopper, Door |
|
$ 19.76 | |||||
| 5 | W10770972 | Holder, Door Cable |
|
- | |||||
| 6 | W11320318 | Cable, Door User Interface |
|
$ 131.29 | |||||
| 7 | W10540298 | Plate, Ui Insulation |
|
- | |||||
| 8 | W10770970 | Holder, Ui |
|
- | |||||
| 9 | W11443155 | Pcba, User Interface (Replaces: W10848100) |
|
- | |||||
| 10 | W10478213 | Cushion, Handle |
|
- | |||||
| 11 | WPW10478721 | Glass, Outer (black) (Replaces: W10478721) |
|
$ 151.79 | |||||
| 12 | W10867015 | Assembly, Door Frame (stainless) |
|
- | |||||
| 13 | W10617743 | Cover, Ui |
|
- | |||||
| 14 | W10476546 | Bracket, Door |
|
- | |||||
| 15 | W10476550 | Frame, Back Decorating (black) |
|
- | |||||
| 16 | W11045518 | Body, Door (with Glass) (Replaces: W10891969) |
|
$ 211.76 | |||||
| 17 | W11699920 | Bracket, Outer Door (black) (Replaces: W10734943) |
|
$ 73.87 | |||||
| 18 | W10478657 | Cover, Screw (black) |
|
Immediately | $ 19.25 |
