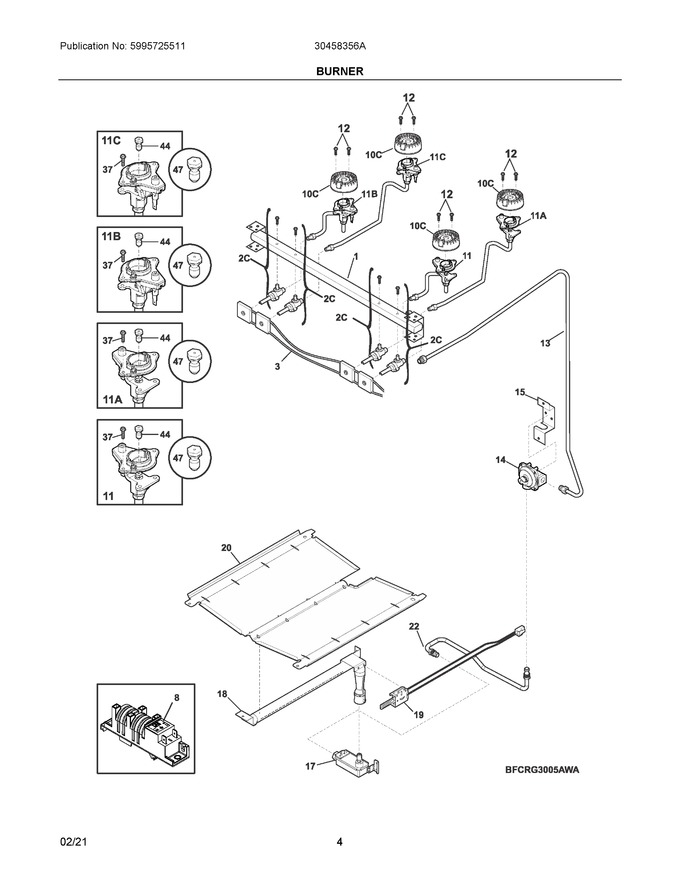

03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304514361 | Manifold, Pipe |
|
- | |||||
| 3 | 5304520897 | Harness, Ignition |
|
- | |||||
| 8 | 808608802 | Spark Module |
|
Immediately | $ 82.93 | ||||
| 11 | 316536602 | Ignitor/orifice Assy., Top Burner, 9.5k, W/holder, Tube (Replaces: 316536603) |
|
$ 132.62 | |||||
| 12 | 316540900 | Screw, Burner, Head Mtg, (8) |
|
Immediately | $ 15.17 | ||||
| 13 | 316489100 | Tube, 3/8, Aluminum, Rgltr To Manf, With Fittings |
|
$ 77.97 | |||||
| 14 | 5304521339 | Regulator, Pressure |
|
Immediately | $ 105.42 | ||||
| 15 | 316091600 | Bracket, Regulator |
|
$ 73.56 | |||||
| 17 | 316572800 | Valve, Safety |
|
$ 302.59 | |||||
| 18 | 316404400 | Burner, Oven |
|
$ 109.10 | |||||
| 19 | 316489403 | Ignitor, Bake (Replaces: 5304508786) |
|
Immediately | $ 113.15 | ||||
| 20 | 5304519024 | Baffle, Oven Burner |
|
Immediately | $ 80.39 | ||||
| 22 | 5304520704 | Tube, Valve, 3/8 |
|
$ 37.16 | |||||
| 37 | 316240600 | Screw, Assy Mtg, (8), Ignitor/orifice |
|
Immediately | $ 12.13 | ||||
| 44 | 316527502 | Orifice, Burner, 12k |
|
$ 22.68 | |||||
| 47 | GRLP4 | Lp Conversion Kit, W/instructions, Optional, Accessory |
|
Immediately | $ 56.70 | ||||
| 10C | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 52.45 | ||||
| 11A | 316536600 | Ignitor/orifice Assy., Top Burner, 9.5k, W/holder, Tube (Replaces: 316536601) |
|
$ 124.27 | |||||
| 11B | 316536602 | Ignitor/orifice Assy., Top Burner, Left Front, 9.5k, W/holder, Tube |
|
$ 132.62 | |||||
| 11C | 316536600 | Ignitor/orifice Assy., Top Burner, Left Rear, 9.5k, W/holder, Tube |
|
$ 124.27 | |||||
| 2C | 5304506548 | Valve, Top Burner, Green Stem, 850btu |
|
Immediately | $ 82.66 | ||||
| NI | 241500305 | Screw, Self Pierce, #8, 18x.63 (Replaces: 297174300) |
|
$ 3.03 | |||||
| NI | 316519700 | Screw, Cup Pt, 8-18 X 0.375, Chrome (Replaces: 316021108) |
|
$ 10.02 | |||||
| NI | 5304535516 | Harness-ignitor (Replaces: 316580601) |
|
$ 68.28 | |||||
| NI | 316215600 | Screw, Valve Mtg., 1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NIA | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NIA | 316498100 | Shield, Wire, Safety Valve |
|
$ 15.17 | |||||
| NIB | 316257400 | Bracket, Spark Module |
|
$ 15.17 |
