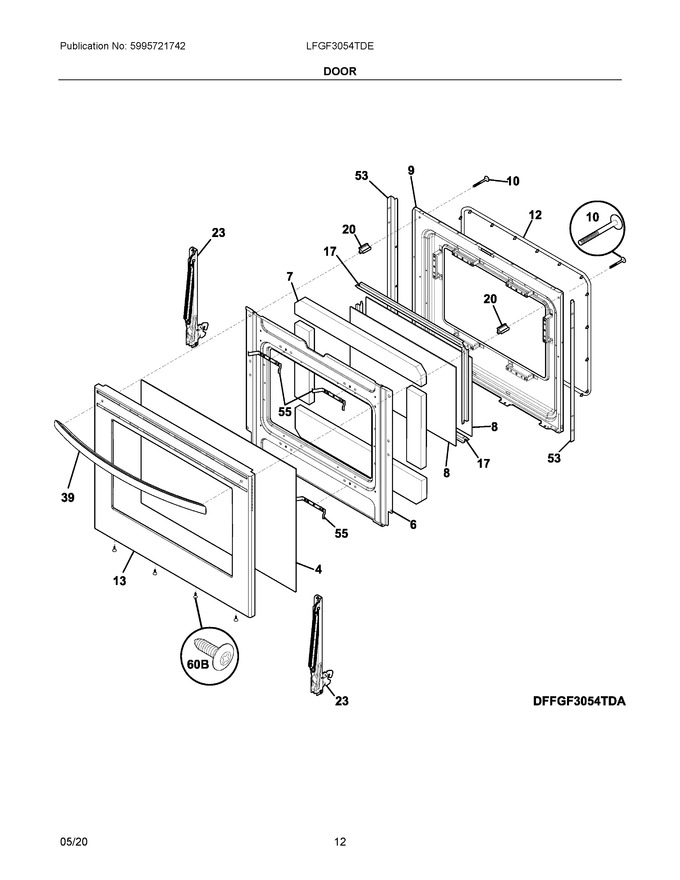

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452754		Glass, Oven Door, Black, W/foil				$ 132.42
6	316402316		Shield, Wool			Immediately	$ 88.72
7	316403900		Insulation, Oven Door			Immediately	$ 72.30
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	316423807		Liner-oven Door				$ 171.40
10	5304507924		Screw, Handle Mtg., #10-24 X 2, (2)   (Replaces: 316439505)			Immediately	$ 16.48
12	5304498835		Seal, Oven Door			Immediately	$ 88.74
13	316604003		Panel, Oven Door, Black Stainless		Appelez-nous	-
17	5304504811		Spacer, Glass			Immediately	$ 25.02
20	316284102		Spacer, Door Handle, (2)			Immediately	$ 17.44
23	316575902		Hinge, Oven Door, Red				$ 102.38
39	140067504104		Handle, Door, Black Stainless   (Replaces: 5304509119)		Appelez-nous	-
53	5304532043		Shield, Filler, Door, (2)   (Replaces: 316408101)				$ 37.41
55	316408301		Bracket, Glass Support, (4)				$ 6.07
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	5304508804		Touch Up Paint, Pen, Black Stainless		Appelez-nous	-
NI	316483102		Label, Anti-tip				$ 3.56
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
