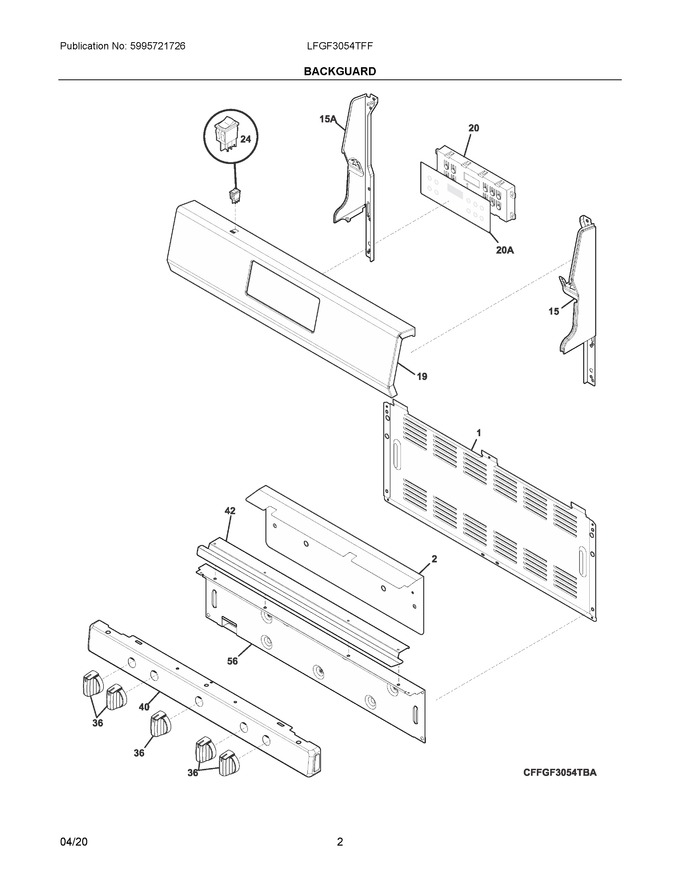

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall				$ 57.64
2	5304508980		Shield, Backguard, Inner		Appelez-nous	-
15	5304493644		Cap, End, Black, Rh				$ 66.74
19	5304508960		Panel, Backguard				$ 280.20
20	5304516117		Control, Es300, Gas				$ 297.38
24	5304527841		Switch, Rocker, Black, Oven Light   (Replaces: 5304515139)			Immediately	$ 11.38
36	5304509064		Knob, Stainless				$ 66.74
40	316606135		Panel-manifold, Stainless   (Replaces: 316606126)				$ 132.36
42	808754601		Deflector, Backguard				$ 77.97
56	316230708		Shield, Backguard, Inner				$ 61.66
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 66.74
20A	316419145		Overlay, Clock, Black, Es300			Immediately	$ 50.06
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
