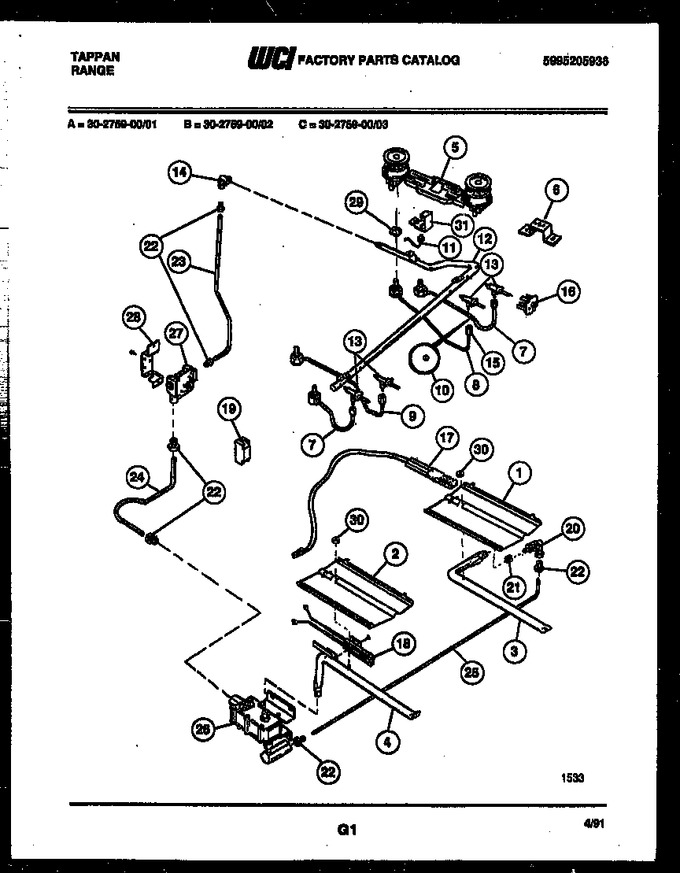

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303210379		Baffle, Broil				$ 175.88
2	3131284		Baffle-oven Burner				$ 155.77
3	08067935		Burner-broiler				$ 142.59
4	3131290		Burner-oven		Appelez-nous	-
5	5303131147		Burner-top-double		Appelez-nous	-
6	3200277		Brkt-burner Mtg		Appelez-nous	-
7	5303131970		Burner, Tube Front (2)		Appelez-nous	-
8	5303011569		Burner-tube-rr		Appelez-nous	-
9	5303011570		Burner-tube-lr		Appelez-nous	-
10	08067945		Ferrule		Appelez-nous	-
11	3200276		Igniter-top Burner (2)		Appelez-nous	-
12	3018861		Manifold Pipe		Appelez-nous	-
13	5303017542		Valve-top-2 Pos		Appelez-nous	-
14	08067948		Elbow		Appelez-nous	-
15	3131148		Nut Compression (4)		Appelez-nous	-
16	3131568		Ignition Switch (4)		Appelez-nous	-
17	5303935068		Igniter-broiler Burner   (Replaces: 5308067970)				$ 166.55
18	5303935066		Igniter-oven   (Replaces: 5303131300)			Immediately	$ 59.58
19	5303200669		Spark Module		Appelez-nous	-
20	08067979		Mixer-elbow		Appelez-nous	-
21	3131358		Nut		Appelez-nous	-
22	3131261		Fitting, Loxit		Appelez-nous	-
23	5303208495		Tube-alum-regul To Manifold		Appelez-nous	-
24	5303208494		Tube-alum-valve To Regul		Appelez-nous	-
25	5303208493		Tube-alum-valve To Mixer		Appelez-nous	-
26	5303208499		Valve-safety-dual			Immediately	$ 559.67
27	5303208498		Control, Regulator		Appelez-nous	-
28	08067934		Bracket-regulator		Appelez-nous	-
29	3013279		Nut, Special				$ 2.34
30	3131358		Nut		Appelez-nous	-
31	3016993		Retainer-igniter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
