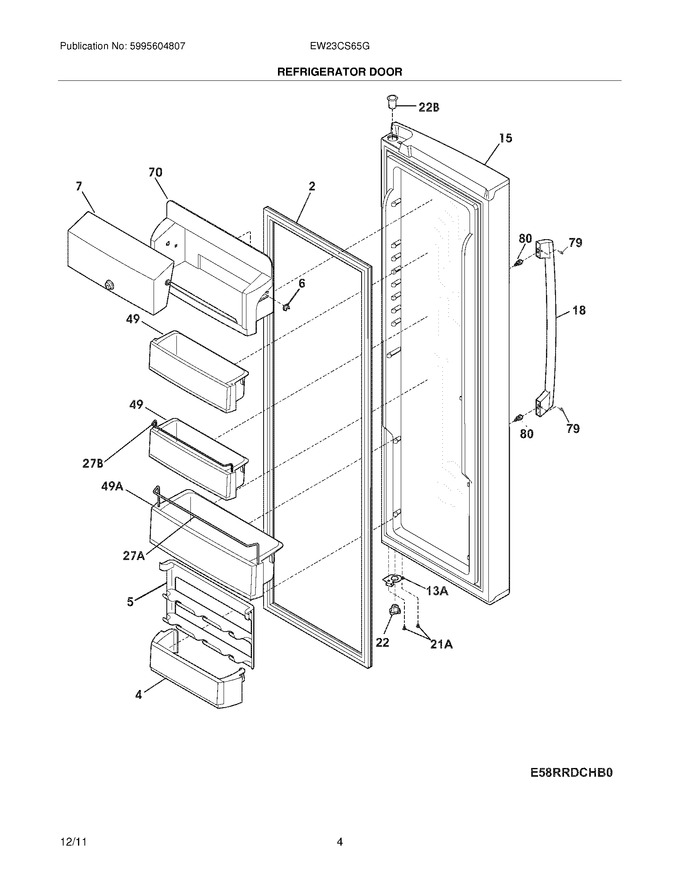

05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


26 - Wiring Schematic


27 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	241751401		Bin-door,pseudo ,bottom				$ 100.07
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 42.47
7	241749201		Door-dairy				$ 70.31
15	242038838		Door-refr,white ,complete Assy		Appelez-nous	-
18	241761012		Handle-door		Appelez-nous	-
22	241990301		Bearing-hinge,gray				$ 7.09
49	241750501		Bin-door,2-liter				$ 127.30
70	241749301		Compartment-dairy,removable				$ 74.47
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	241990201		Door Stop,black ,ref				$ 21.27
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	241760403		Bearing,hinge ,top			Immediately	$ 19.13
27A	241752802		Retainer-bottle				$ 34.17
27B	241752803		Retainer-bottle,2 Liter				$ 17.16
49A	241750201		Bin-door,gallon				$ 121.77
F2	241510201		Gasket-refr Door,white ,magnetic			Immediately	$ 222.14
NI	241601002		Wrench,allen		Appelez-nous	-
NI	241836401		Latch-door				$ 18.43
NI	241836301		Knob-dairy Door				$ 38.98
NI	241836201		Divider-dairy Compt		Appelez-nous	-
NI	5304453707		Screw   (Replaces: 241641501)			Immediately	$ 15.92
