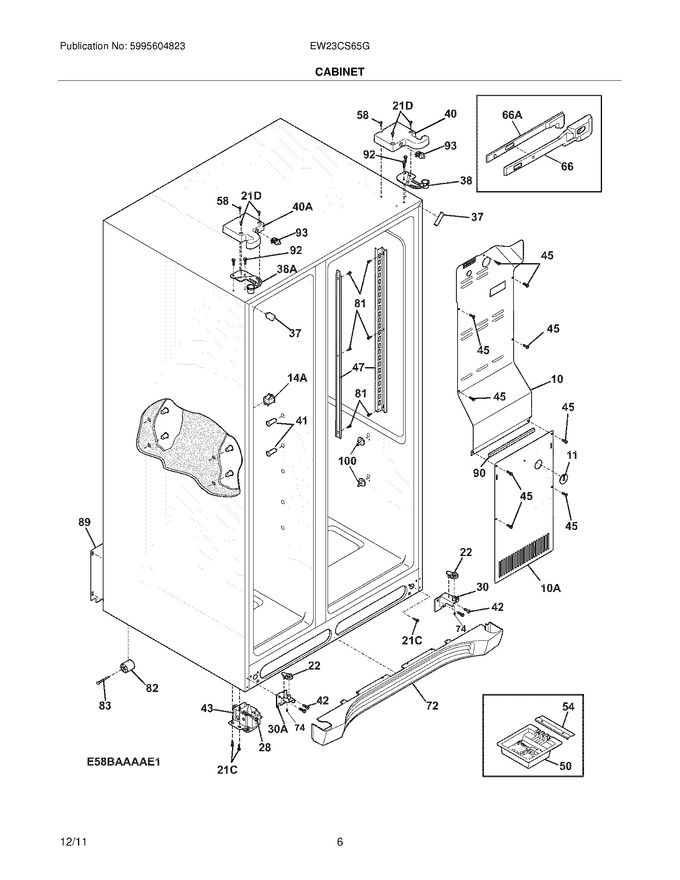

07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


26 - Wiring Schematic


27 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	241509804		Cover-air Duct				$ 133.35
11	5303208309		Plug-hole, Factory Test				$ 45.50
22	241917801		Plate-door Closer				$ 7.09
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 31.33
30	241918001		Bracket-lower Hinge,rh ,w/hinge Pin   (Replaces: 241917901)				$ 65.92
37	242161201		Trim-cabinet Corner,white ,(2)   (Replaces: 240337608)			Immediately	$ 2.93
38	241761301		Bracket-upper Hinge,rh				$ 66.25
40	241761505		Cover-upper Hinge,white		Appelez-nous	-
41	241550801		Grommet-shelf Mtg,1.40`` Long				$ 63.70
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy,front ,(2)   (Replaces: 240335006)			Immediately	$ 31.33
45	241500303		Screw,hex Washer Head ,8-18ab X 1/2			Immediately	$ 4.55
47	241513001		Channel-shelf Mtg,side ,(2)				$ 112.24
54	241532401		Channel				$ 30.47
58	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
66	241861301		Housing-damper				$ 79.62
72	241758703		Grille/kickplate				$ 63.93
74	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 35.34
89	5304520905		Cover-access,w/label   (Replaces: 241733905)			Immediately	$ 74.03
90	218249808		Seal-coil Cover		Appelez-nous	-
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 13.46
93	241911710		Switch,plunger Style   (Replaces: 241911703)				$ 10.62
100	241993101		Support-crisper Cvr			Immediately	$ 5.62
10A	241719712		Cover-evap Coil,lower		Appelez-nous	-
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
21D	241548003		Screw,10-32 X 3/8				$ 3.03
30A	241917902		Bracket-lower Hinge,lh ,w/hinge Pin		Appelez-nous	-
38A	241761302		Bracket-upper Hinge,lh				$ 64.49
40A	241761506		Cover-upper Hinge,white		Appelez-nous	-
66A	241861201		Slide-damper,meat Pan				$ 42.48
F100	241993001		Support-crisper Cvr			Immediately	$ 19.23
F14A	241547902		Switch-light/lamp,frzr Door   (Replaces: 241547901)			Immediately	$ 23.25
F40A	241891901		Harness-wiring,freezer		Appelez-nous	-
F50	242009010		Board-main Power		Appelez-nous	-
FNI	241835801		Harness-wiring				$ 18.20
FNI	241867901		Harness-wiring				$ 170.68
NI	241890601		Louver,air Supply ,crisper				$ 15.60
NI	240346703		Tape-foam				$ 2.28
NI	241550701		Grommet-shelf Mtg,.96`` Long				$ 18.20
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 18.20
NI	241852501		Clip,wiring Harness				$ 15.60
NI	5303321319		Paint,touch-up ,white			Immediately	$ 13.46
NI	241781601		Seal-return Air				$ 9.10
