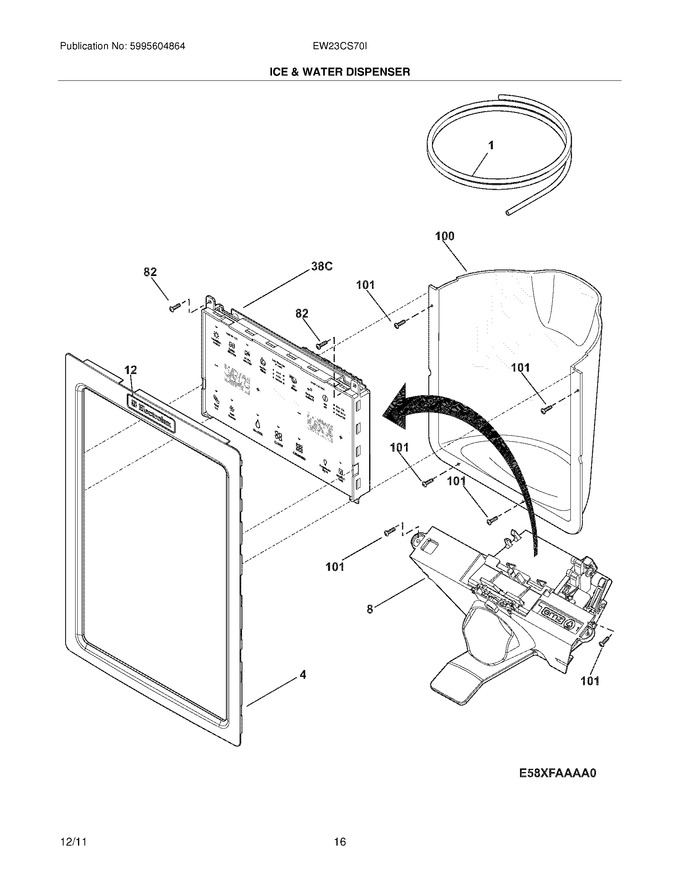

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube,water ,60`` ,natural ,door			Immediately	$ 60.25
4	241757502		Cover-module,black				$ 70.82
8	242100018		Module-dispenser,clear   (Replaces: 241753402)			Immediately	$ 255.15
12	241873302		Nameplate,black				$ 10.21
82	240363403		Screw,8-18 X 0.500 ,2		Appelez-nous	-
100	241753302		Liner-ice Dispenser,black				$ 53.78
101	5304453707		Screw,plask ,no.8-18 X .500   (Replaces: 240363402)			Immediately	$ 15.92
F38C	241853102		Harness-ribbon Cable				$ 63.47
F38C	5303918583		User Interface Kit,vcc Compressor				$ 877.15
FNI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker   (Replaces: 240561702)			Immediately	$ 20.56
NI	241850615		Tube-water Inlet,inlet Valve ,to I/m Inlet   (Replaces: 218976915)				$ 34.73
NI	218976421		Tube-water Inlet,valve To Door				$ 20.56
NI	218976420		Tube-water Inlet,inlet Valve ,to Filter				$ 44.65
