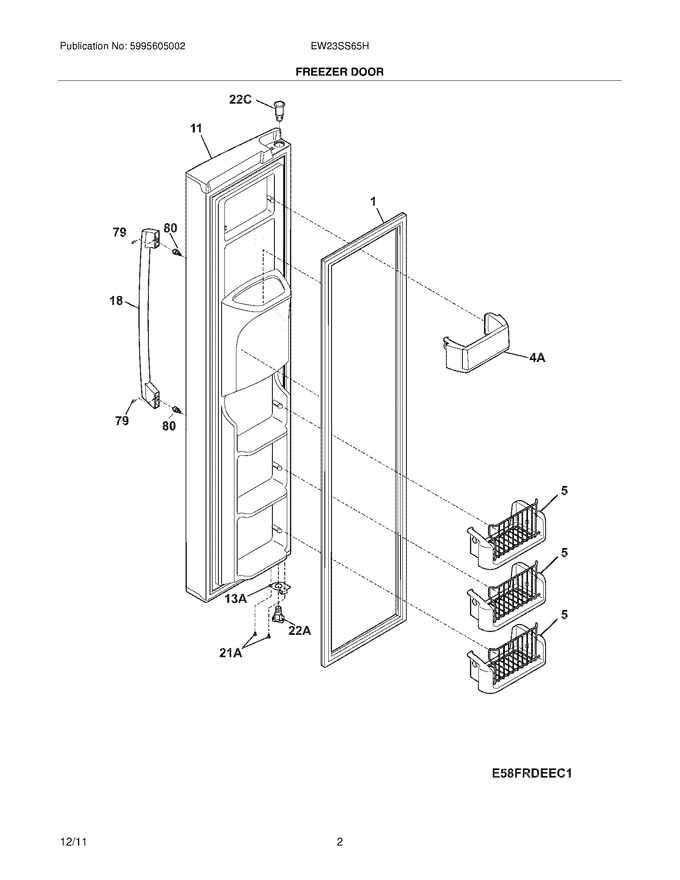

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786016 | Gasket-frzr Door,black ,magnetic (Replaces: 241786008) |
|
$ 93.12 | |||||
| 5 | 241545004 | Bin-tilt Out,tilt-out |
|
$ 102.63 | |||||
| 11 | 241837158 | Door-frzr,black ,complete Assy |
|
- | |||||
| 18 | 241881317 | Handle-door,black |
|
$ 240.46 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 241990202 | Door Stop,black ,frzr |
|
Immediately | $ 21.27 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 241990302 | Bearing-hinge(frz),closer |
|
$ 7.09 | |||||
| 22C | 241760402 | Bearing,hinge ,top |
|
$ 19.13 | |||||
| 4A | 241751701 | Bin-door,frzr-upper |
|
- | |||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NI | 240545201 | Connector-water,straight (Replaces: 240352102) |
|
$ 73.71 | |||||
| NI | 240451503 | Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe |
|
$ 3.79 | |||||
| NI | 241834701 | Harness-wiring,door |
|
$ 101.16 | |||||
| NI | 241601002 | Wrench,allen |
|
- |
