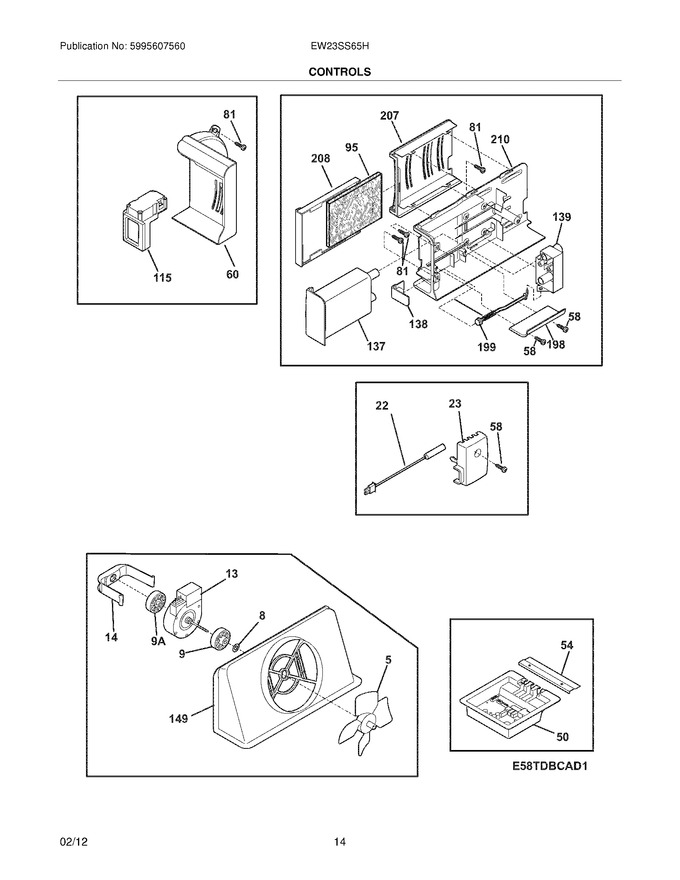

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241563601 | Bushing-motor Mtg |
|
Immediately | $ 17.72 | ||||
| 14 | 242135301 | Clip,evap Fan Motor (Replaces: 241517701) |
|
$ 7.79 | |||||
| 22 | 240597220 | Sensor,(2) (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 23 | 241845401 | Housing-sensor |
|
- | |||||
| 54 | 241532401 | Channel |
|
$ 30.47 | |||||
| 58 | 5304455649 | Screw,pan Hd ,6-20 X 0.438 |
|
$ 17.01 | |||||
| 60 | 241794301 | Diffuser-air |
|
$ 76.81 | |||||
| 81 | 218843801 | Screw,hx Wshr Hd Sems ,8-15a X 0.625 (Replaces: 5304455658) |
|
$ 14.41 | |||||
| 95 | 241754001 | Filter-air |
|
- | |||||
| 115 | 241853801 | Damper Assy,w/seal |
|
$ 157.35 | |||||
| 138 | 241754602 | Button-filter Release |
|
$ 35.28 | |||||
| 139 | 240396002 | Base-water Filter |
|
Immediately | $ 119.66 | ||||
| 149 | 241563401 | Shroud-fan Orfice |
|
- | |||||
| 198 | 241754801 | Support,water Filter |
|
- | |||||
| 199 | 240397501 | Rod |
|
$ 55.57 | |||||
| 207 | 241754202 | Housing-air Filter |
|
$ 48.20 | |||||
| 208 | 241754302 | Sleeve,air Filter ,silver ,front |
|
$ 51.46 | |||||
| 210 | 241754502 | Housing-water Filtr |
|
- | |||||
| 9A | 241845301 | Bushing-motor Mtg |
|
$ 22.68 | |||||
| F13 | 809069220 | Motor,evaporator Fan (Replaces: 241509402) |
|
Immediately | $ 154.14 | ||||
| F137 | EWF01C | Filter,water ,carbon Cassette ,front ,with O`rings (Replaces: 241932301) |
|
Immediately | $ 75.59 | ||||
| F137 | 242227701 | Bypass,water Filter ,optional Part (Replaces: 241944301) |
|
$ 83.64 | |||||
| F149 | 241528305 | Seal,shroud |
|
- | |||||
| F199 | 240398401 | Spring-filter Release Rod |
|
$ 59.16 | |||||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| F50 | 5303918523 | Board-main Power (Replaces: 242000409) |
|
$ 294.84 | |||||
| FNI | 241867901 | Harness-wiring |
|
$ 170.68 | |||||
| NI | 241945101 | Insulation-air Duct |
|
$ 19.85 | |||||
| NI | 241852501 | Clip,wiring Harness |
|
$ 15.60 | |||||
| NI | 3205266 | Edge Protector, Wiring Harness |
|
$ 80.09 |
