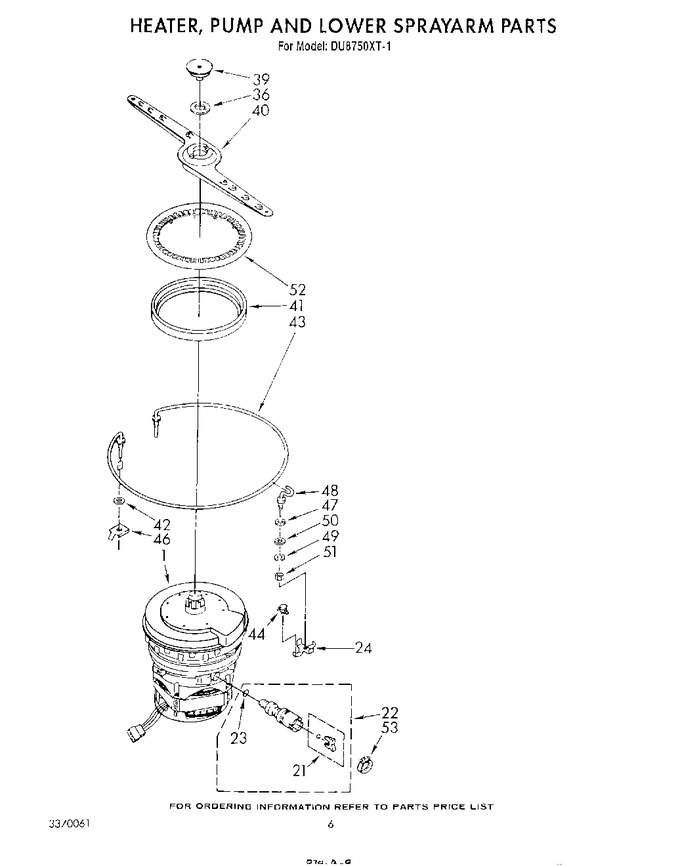

04 - Heater, Pump And Lower Spray Arm


05 - Dishrack And Panel


06 - Pump And Motor


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3367725		Pump & Motor Assembly (includes Item 41)		Appelez-nous	-
21	300797		Check Ball & Retainer		Appelez-nous	-
22	675238		Valve, Check (includes Items 21 & 23)				$ 78.04
23	95080		``o`` Ring		Appelez-nous	-
24	3368272		Bracket, Thermostat		Appelez-nous	-
36	719576		Bearing, Nozzle				$ 7.48
39	3367910		Cap, And Connector				$ 39.70
40	302767		Spray Arm, Lower		Appelez-nous	-
41	717000		Gasket, Pump				$ 78.98
42	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 6.47
43	660318		Heater		Appelez-nous	-
44	661504		Thermostat		Appelez-nous	-
46	718537		Nut, 7/16 X 20 (2)		Appelez-nous	-
47	717289		Washer, Retainer (2)		Appelez-nous	-
48	717096		Support, Heater (2)		Appelez-nous	-
49	711284		Washer (2)		Appelez-nous	-
50	14351		Washer (2)		Appelez-nous	-
51	120614		Nut, 10-32 (2)		Appelez-nous	-
52	303469		Grate		Appelez-nous	-
53	WP3367052		Clamp, Hose   (Replaces: 3367052)				$ 7.49
