SELECT A DIAGRAM

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Heater, Pump, And Lower Spray Arm


05 - Dishrack And Panel


06 - Pump And Motor


07 - Wiring Harness

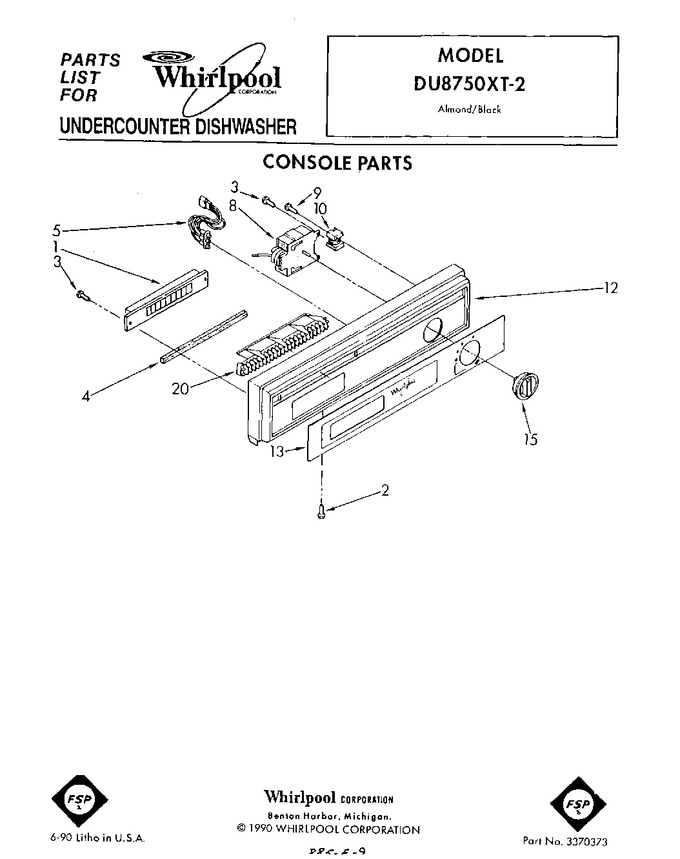

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3367741		Switch, Pushbutton		Appelez-nous	-
2	WP488729		Screw (2)   (Replaces: 304234)			Immediately	$ 7.01
3	WP304231		Screw, 8-16 X 1/2   (Replaces: 304231)			Immediately	$ 6.98
4	3368537		Seal, Foam		Appelez-nous	-
5	304422		Light, Indicator (for Electrical Connector Only, See Wiring Harness Parts Page).		Appelez-nous	-
8	3368534		Timer (for Electrical Connector Only, See Wiring Harness Page.)		Appelez-nous	-
9	304232		Screw, 7-18 X 1-3/8		Appelez-nous	-
10	304409		Relay, Start		Appelez-nous	-
12	3367889		Console (includes Illus. 13 & 20)		Appelez-nous	-
13	3368424		Insert, Decorative		Appelez-nous	-
15	3367282		Knob, Timer		Appelez-nous	-
20	304602		Grill, Vent		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
