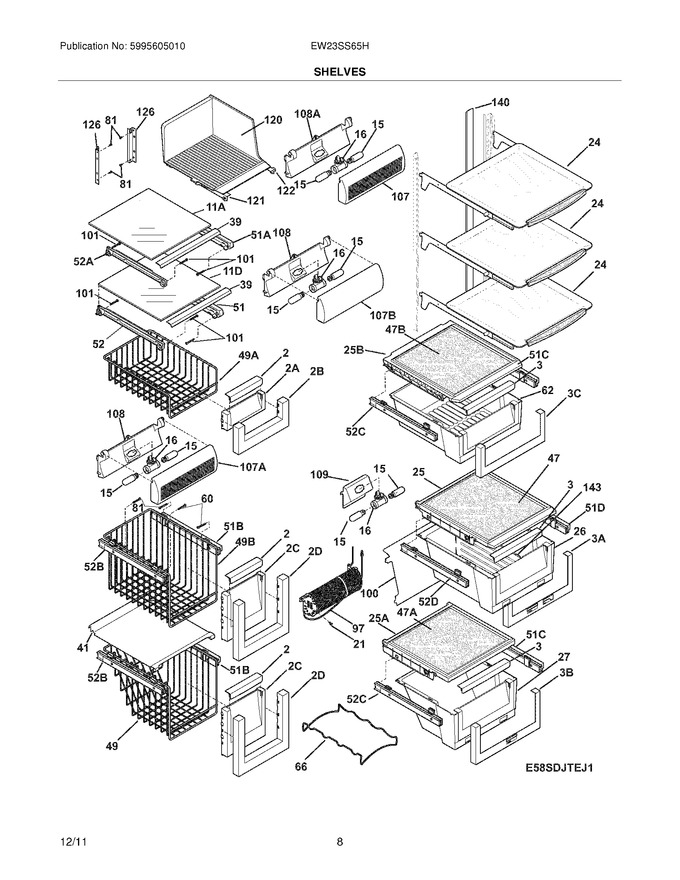

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


24 - Wiring Schematic


25 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241800001		Trim-basket,handle		Appelez-nous	-
3	241935301		Handle-crisper Pan,silver				$ 27.08
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
16	241622802		Socket-light,frz Light				$ 65.93
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	241753104		Shelf-glass,formed		Appelez-nous	-
25	241744401		Cover-crisper Pan,upper		Appelez-nous	-
26	241745602		Pan-crisper,upper				$ 156.26
27	241746701		Pan-crisper,lower		Appelez-nous	-
39	240367606		Trim-shelf,front				$ 8.28
41	241936701		Shelf-freezer,plastic ,lower				$ 73.10
47	240350613		Insert-pan Cover,glass   (Replaces: 240350631)				$ 123.62
49	241743001		Basket-sliding		Appelez-nous	-
51	241799601		Hanger-basket,rh				$ 41.72
52	241799701		Hanger-basket,lh				$ 34.02
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
62	241747901		Pan-meat				$ 123.90
66	241982701		Rack-wine		Appelez-nous	-
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	241532006		Water Tank				$ 130.41
100	240326303		Cover-water Tank				$ 61.28
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
107	241753501		Shield-light,refr				$ 43.89
108	241513301		Cover-wiring,meat Pan Light				$ 64.17
109	241513202		Base-crisper Light Socket				$ 65.21
120	241740701		Shelf-ice Cream		Appelez-nous	-
121	241561001		Rail-ice Cream Shelf,lh				$ 101.63
122	241561101		Rail-ice Cream Shelf,rh				$ 78.87
126	241674402		Channel,auger Mtg ,rh				$ 43.24
126	241674401		Channel,auger Mtg ,lh				$ 47.48
140	241812501		Channel,wtr Tube Cover		Appelez-nous	-
143	241746001		Divider-crisper Pan				$ 51.50
11A	241992913		Shelf-freezer,glass ,upper				$ 69.46
11D	241992914		Shelf-freezer,glass ,lower				$ 51.74
25A	241746401		Cover-crisper Pan,lower		Appelez-nous	-
25B	241747701		Cover-meat Pan		Appelez-nous	-
2A	241741101		Trim-basket,front		Appelez-nous	-
2B	241741201		Trim-basket		Appelez-nous	-
2C	241742401		Trim-basket,front		Appelez-nous	-
2D	241742501		Trim-basket		Appelez-nous	-
3A	5303918421		Trim-crisper,w/hum Cntl&btn				$ 73.71
3B	5303918422		Trim-crisper,w/hum Cntl&btn		Appelez-nous	-
3C	241748001		Trim-meat Pan		Appelez-nous	-
47A	240350614		Insert-pan Cover,glass				$ 145.60
47B	240443382		Insert-pan Cover,glass				$ 33.50
49A	241741401		Basket-frzr,upper		Appelez-nous	-
49B	241742601		Basket-sliding,upper ,full		Appelez-nous	-
51A	240395502		Hanger-basket,rh				$ 73.00
51B	241809101		Hanger-basket,rh				$ 187.82
51C	240579821		Hanger-basket,13.00 ,rh   (Replaces: 240579807)			Immediately	$ 125.45
51D	240579822		Hanger-basket,10.19 ,rh   (Replaces: 240579808)				$ 102.06
52A	240395602		Hanger-basket,lh				$ 61.66
52B	241809102		Hanger-basket,lh				$ 158.05
52C	240579819		Hanger-basket,13.00 ,lh   (Replaces: 240579805)				$ 113.00
52D	240579820		Hanger-basket,10.19 ,lh   (Replaces: 240579806)				$ 100.65
F107	241949202		Shield-light,frzr		Appelez-nous	-
F107	241947502		Shield-light,meat Pan		Appelez-nous	-
F108	241753701		Housing-light,upper ,fresh Food				$ 22.58
F51B	297049500		Clip-slide,basket			Immediately	$ 20.56
FNI	241797601		Harness-wiring		Appelez-nous	-
NI	241938101		Screw,truss Hd ,8-8ab X 1 3/4		Appelez-nous	-
NI	5304535377		Tape,aluminum ,3`` Wide   (Replaces: 240570304)				$ 31.36
NI	240349801		Clip-slide,pan-crisper				$ 20.48
NI	241510802		Harness-wiring,frz Light				$ 41.81
NI	241935538		Energy Guide		Appelez-nous	-
