SELECT A DIAGRAM

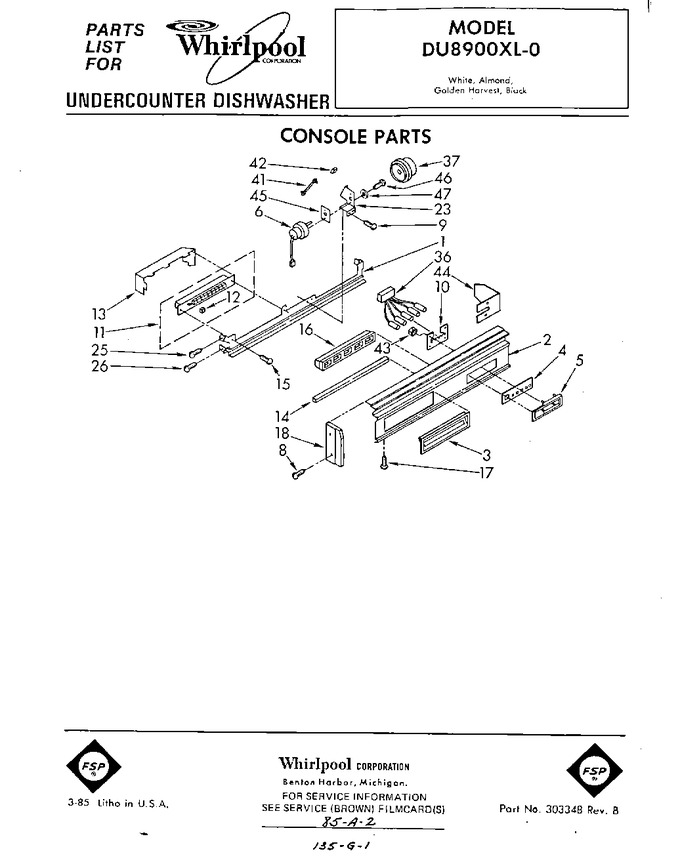

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Pump And Motor


05 - Heater, Pump And Lower Sprayarm


06 - Dishrack


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302048		Bracket, Console		Appelez-nous	-
2	303290		Panel, Escutcheon		Appelez-nous	-
3	303318		Bezel Assembly, Pushbutton		Appelez-nous	-
4	303283		Lens, Light Indicator		Appelez-nous	-
5	301938		Bezel, Indicator Light		Appelez-nous	-
6	301991		Timer, Delay (alternate)		Appelez-nous	-
6	302680		Timer, Delay (alternate)		Appelez-nous	-
8	W10759522		Screw, 8-15 X 3/4 (4)   (Replaces: 162402)				$ 6.98
9	WP489128		Screw (2)   (Replaces: 98209)				$ 9.79
10	301941		Socket, Indicator Light		Appelez-nous	-
11	303293		Switch, Pushbutton		Appelez-nous	-
12	301978		Button (10)		Appelez-nous	-
13	303129		Barrier, Pushbutton		Appelez-nous	-
14	719860		Baffle		Appelez-nous	-
15	WP489128		Screw (2)   (Replaces: 98209)				$ 9.79
16	301878		Grille, Vent		Appelez-nous	-
17	WP487353		Screw, 6-20 X .38   (Replaces: 301502)				$ 6.81
18	303006		Cap, End (l.h.)		Appelez-nous	-
18	303005		Cap, End (r.h.)		Appelez-nous	-
23	301869		Bracket, Timer Mounting		Appelez-nous	-
25	WP302868		Screw, 8-18 X 1/2 (2)   (Replaces: 302868)			Immediately	$ 6.98
26	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65
36	303022		Light Assembly		Appelez-nous	-
37	301970		Dial Assembly, Delay Timer		Appelez-nous	-
41	302111		Hanger, Harness		Appelez-nous	-
42	302460		Pad, Rubber		Appelez-nous	-
43	98788		Nut (4)		Appelez-nous	-
44	302157		Barrier, End Cap		Appelez-nous	-
45	302158		Barrier, Delay Timer		Appelez-nous	-
46	302252		Screw, 6-32 X 5/16		Appelez-nous	-
47	301522		Spacer, Timer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
