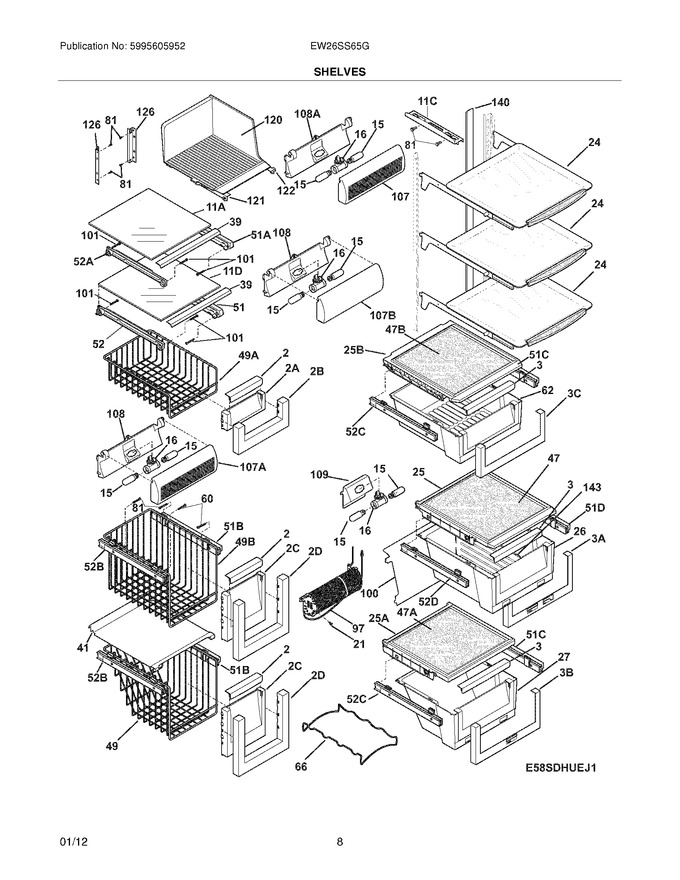

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241741301		Trim-basket				$ 55.99
3	241745301		Handle-crisper Pan,silver				$ 74.81
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
16	241622802		Socket-light,frz Light				$ 65.93
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
24	241753103		Shelf-glass,formed				$ 448.19
25	241745501		Cover-crisper Pan,upper				$ 61.61
26	241745601		Pan-crisper,upper ,w/divi Retainer		Appelez-nous	-
27	241950502		Pan-crisper,lower   (Replaces: 241747301)				$ 229.64
39	240367602		Trim-shelf,front				$ 45.36
41	241855801		Baffle-air				$ 72.30
47	240350649		Insert-pan Cover,glass			Immediately	$ 123.89
49	241743601		Basket-sliding				$ 180.65
51	241799601		Hanger-basket,rh				$ 41.72
52	241799701		Hanger-basket,lh				$ 34.02
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
62	241784101		Pan-meat				$ 210.55
66	241748901		Rack-wine				$ 77.97
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
97	241532006		Water Tank				$ 130.41
100	240326304		Cover-water Tank				$ 73.57
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
107	241753601		Shield-light,upper				$ 30.91
108	241513301		Cover-wiring,meat Pan Light				$ 64.17
109	241513202		Base-crisper Light Socket				$ 65.21
120	241740801		Shelf-ice Cream				$ 60.06
121	241561001		Rail-ice Cream Shelf,lh				$ 101.63
122	241692001		Rail-ice Cream Shelf,lh				$ 85.69
126	241674401		Channel,auger Mtg ,lh				$ 47.48
126	241674402		Channel,auger Mtg ,rh				$ 43.24
140	241812501		Channel,wtr Tube Cover		Appelez-nous	-
143	241746001		Divider-crisper Pan				$ 51.50
11A	240350604		Shelf-freezer,glass ,upper				$ 114.52
11C	240324101		Shelf-pizza				$ 59.91
11D	240350605		Shelf-freezer,glass ,lower				$ 106.93
25A	241747101		Cover-crisper Pan,lower				$ 65.36
25B	241748301		Cover-meat Pan				$ 64.94
2A	241741601		Trim-basket,front				$ 41.11
2B	241741701		Trim-basket		Appelez-nous	-
2C	241743201		Trim-basket				$ 83.69
2D	241743301		Trim-basket				$ 44.47
3A	5303918369		Trim-crisper,w/hum Cntl&btn				$ 92.45
3B	5303918370		Trim-crisper,w/hum Cntl&btn				$ 83.27
3C	241748601		Trim-meat Pan				$ 29.07
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
47B	240443381		Insert-pan Cover,glass				$ 119.79
49A	241741801		Basket-sliding,upper ,half		Appelez-nous	-
49B	241743401		Basket-sliding,upper ,full				$ 153.62
51A	240395502		Hanger-basket,rh				$ 73.00
51B	241809101		Hanger-basket,rh				$ 187.82
51C	240579821		Hanger-basket,13.00 ,rh   (Replaces: 240579807)			Immediately	$ 125.45
51D	240579822		Hanger-basket,10.19 ,rh   (Replaces: 240579808)				$ 102.06
52A	240395602		Hanger-basket,lh				$ 61.66
52B	241809102		Hanger-basket,lh				$ 158.05
52C	240579819		Hanger-basket,13.00 ,lh   (Replaces: 240579805)				$ 113.00
52D	240579820		Hanger-basket,10.19 ,lh   (Replaces: 240579806)				$ 100.65
F107	241513402		Shield-light,meat Pan				$ 59.90
F107	241521802		Shield-light,frzr				$ 31.38
F108	241753701		Housing-light,upper ,fresh Food				$ 22.58
F51B	297049500		Clip-slide,basket			Immediately	$ 20.56
F51C	241563901		Clip-slide,pan-crisper ,rear				$ 35.81
F51C	241564001		Clip-slide,pan-crisper ,front		Appelez-nous	-
FNI	241510802		Harness-wiring,frz Light				$ 41.81
FNI	241797601		Harness-wiring		Appelez-nous	-
NI	241938101		Screw,truss Hd ,8-8ab X 1 3/4		Appelez-nous	-
NI	241768191		Energy Guide		Appelez-nous	-
NI	240349801		Clip-slide,pan-crisper				$ 20.48

    View Diagram in Separate Window       Print Part List
