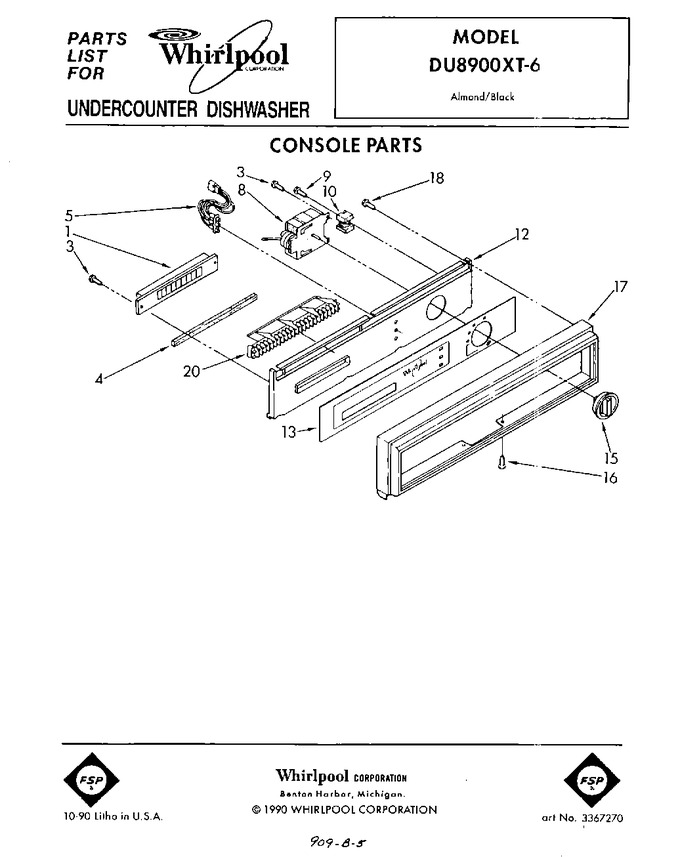

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3367995		Switch, Pushbutton		Appelez-nous	-
3	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 6.98
4	3368537		Foam, Seal		Appelez-nous	-
5	304423		Light, Indicator (for Electrical Connector Only, See Wiring Harness Page.)		Appelez-nous	-
8	3368533		Timer (for Electrical Connector Only, See Wiring Harness Page.)		Appelez-nous	-
9	304232		Screw, 7-18 X 1-3/8		Appelez-nous	-
10	304658		Relay, Start		Appelez-nous	-
12	3367715		Console (includes Items 13 & 20)		Appelez-nous	-
13	3367691		Insert, Decorative		Appelez-nous	-
15	3367282		Knob, Timer		Appelez-nous	-
16	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65
17	304396		Bezel, Console		Appelez-nous	-
18	309258		Screw, 6 X 3/8 (4)		Appelez-nous	-
20	304602		Grill, Vent		Appelez-nous	-
