SELECT A DIAGRAM

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Heater, Pump And Lower Spray Arm


05 - Dish Rack And Panel


06 - Pump And Motor


07 - Wiring Harness

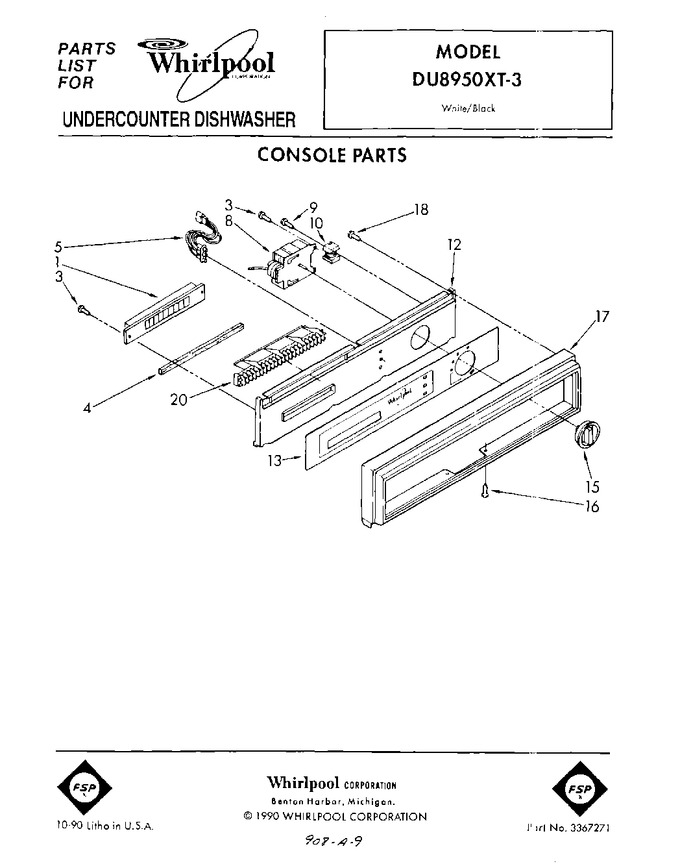

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3368638		Switch, Pushbutton		Appelez-nous	-
3	WP304231		Screw, 8-16 X 1/2   (Replaces: 304231)			Immediately	$ 6.98
4	3368537		Seal, Foam		Appelez-nous	-
5	304423		Light, Indicator (for Electrical Connector Only, See Wiring Harness Page.)		Appelez-nous	-
8	3368533		Timer (for Electrical Connector Only, See Wiring Harness Page.)		Appelez-nous	-
9	304232		Screw, 7-18 X 1-3/8		Appelez-nous	-
10	304658		Relay, Start		Appelez-nous	-
12	3368636		Console		Appelez-nous	-
13	3368639		Insert, Decorative		Appelez-nous	-
15	3368267		Knob, Timer		Appelez-nous	-
16	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
17	304396		Bezel, Console		Appelez-nous	-
18	309258		Screw, 6 X 5/8 (4)		Appelez-nous	-
20	3368592		Grill, Vent		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
