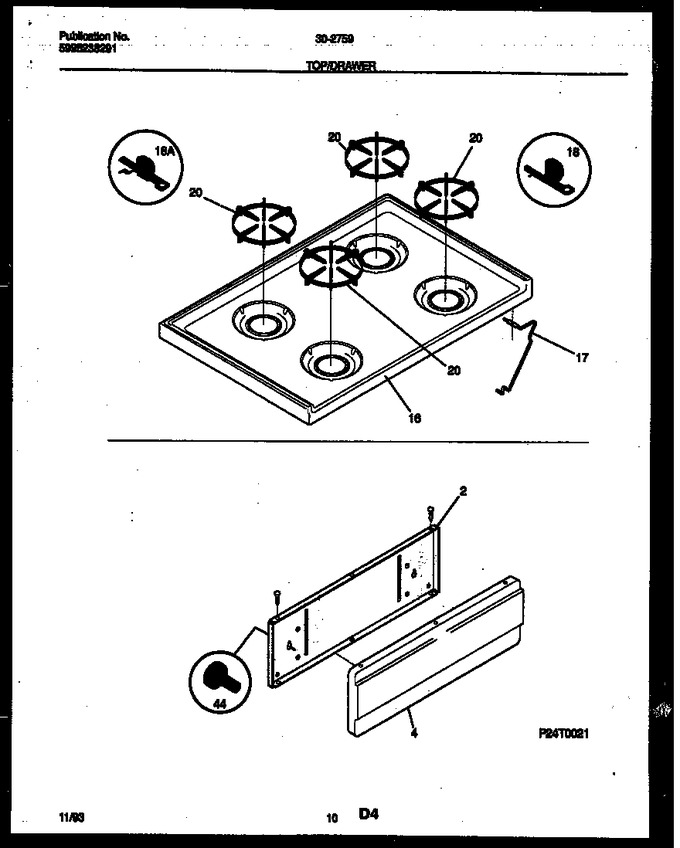

06 - Cooktop And Drawer Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 4 | 3051202 | Panel-dummy, Almond |
|
- | |||||
| 16 | 5303200658 | Main Top, Almond |
|
- | |||||
| 17 | 5303271609 | Rod-maintop Support |
|
- | |||||
| 18 | 08067747 | Bracket-hinge,main Top Rh |
|
- | |||||
| 20 | 316055800 | Grate, (4) |
|
$ 43.99 | |||||
| 44 | 3018702 | Plug-button,glide ,(4) |
|
- | |||||
| *91573 | 3017527 | Foil-aluminum |
|
- | |||||
| *91573 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| 18A | 08067746 | Bracket-hinge,main Top Lh |
|
- | |||||
| 4A | 3200612 | Spacer, Panel/shield (non-illustrated) |
|
- | |||||
| 4B | 08067785 | Screw,hex Washer Head, 8-18(ab) X 1/2 |
|
- |
