SELECT A DIAGRAM

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Heater, Pump, And Lower Spray Arm


05 - Dishrack


06 - 304599 Pump And Motor


07 - Wiring Harness

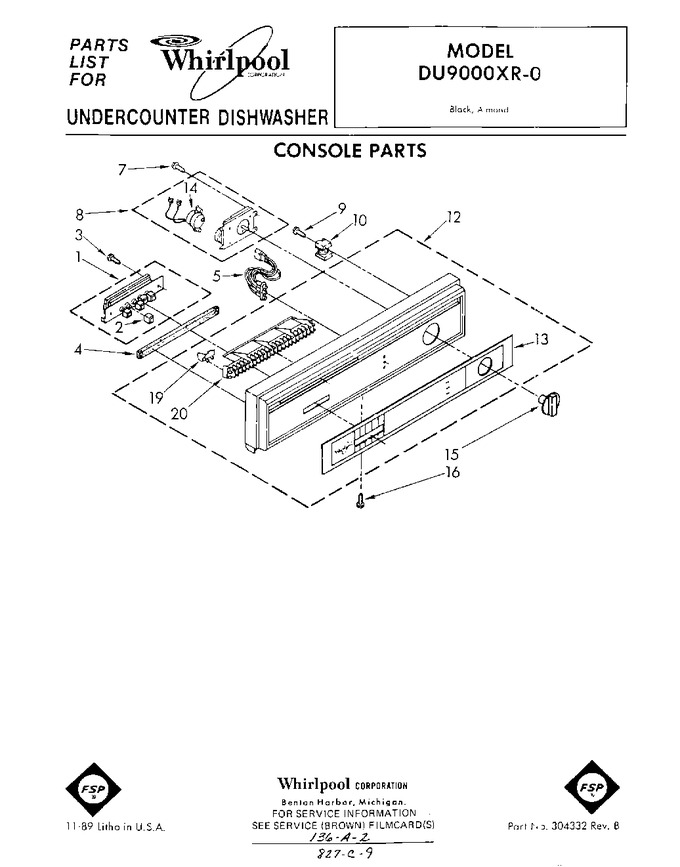

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	304458		Switch, Pushbutton		Appelez-nous	-
2	304456		Button (5)		Appelez-nous	-
3	WP304231		Screw, 8-16 X 1/2 Slot Hex Wash Hd (2)   (Replaces: 304231)			Immediately	$ 6.98
4	719860		Baffle		Appelez-nous	-
5	WPY304474		Light, Indicator (for Electrical Connector Only, See Wiring Harness Page.)   (Replaces: 304474)				$ 89.48
7	WP304231		Screw, 8-16 X 1/2 Slot Hex Wash Hd (3)   (Replaces: 304231)			Immediately	$ 6.98
8	304462		Timer		Appelez-nous	-
9	304232		Screw, 8-18 X 1-3/8 Slot Hex Wash Hd		Appelez-nous	-
10	304658		Relay, Start		Appelez-nous	-
12	304612		Console		Appelez-nous	-
13	304546		Insert, Decorative		Appelez-nous	-
14	301074		Motor, Timer		Appelez-nous	-
15	304574		Knob, Timer		Appelez-nous	-
16	WP488729		Screw, 8-18 X 5/8 Hi-lo (2)   (Replaces: 304234)			Immediately	$ 7.01
19	304604		Cover, Grill		Appelez-nous	-
20	304603		Grill, Vent		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
