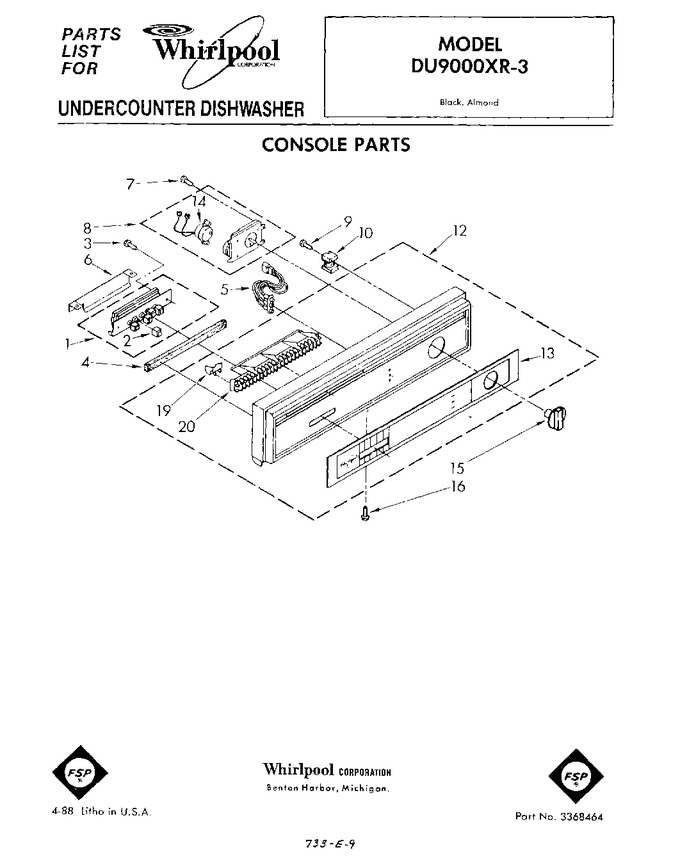

01 - Console
02 - Tub , Literature And Optional
03 - Door
04 - Heater, Pump And Lower Spray Arm
05 - Dishrack
06 - 3367725 Pump And Motor
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3368539 | Switch, Pushbutton |
|
- | |||||
| 2 | 304456 | Button (5) |
|
- | |||||
| 3 | WP304231 | Screw, 8-16 X 1/2 Slot Hex Wash Hd (2) (Replaces: 304231) |
|
Immediately | $ 6.98 | ||||
| 4 | 3368537 | Baffle |
|
- | |||||
| 5 | WPY304474 | Light, Indicator (for Electrical Connector Only, See Wiring Harness Page.) (Replaces: 304474) |
|
$ 89.48 | |||||
| 6 | 3368547 | Shield, Sound |
|
- | |||||
| 7 | WP304231 | Screw, 8-16 X 1/2 Slot Hex Wash Hd (3) (Replaces: 304231) |
|
Immediately | $ 6.98 | ||||
| 8 | 304462 | Timer |
|
- | |||||
| 9 | 304232 | Screw, 8-18 X 1-3/8 Slot Hex Wash Hd |
|
- | |||||
| 10 | 304409 | Relay, Start |
|
- | |||||
| 12 | 304612 | Console |
|
- | |||||
| 13 | 304546 | Insert, Decorative |
|
- | |||||
| 14 | 301074 | Motor, Timer |
|
- | |||||
| 15 | 304574 | Knob, Timer |
|
- | |||||
| 16 | WP488729 | Screw, 8-18 X 5/8 Hi-lo (2) (Replaces: 304234) |
|
Immediately | $ 7.01 | ||||
| 19 | 304604 | Cover, Grill |
|
- | |||||
| 20 | 304602 | Grill, Vent (includes Illus. 19) |
|
- |
