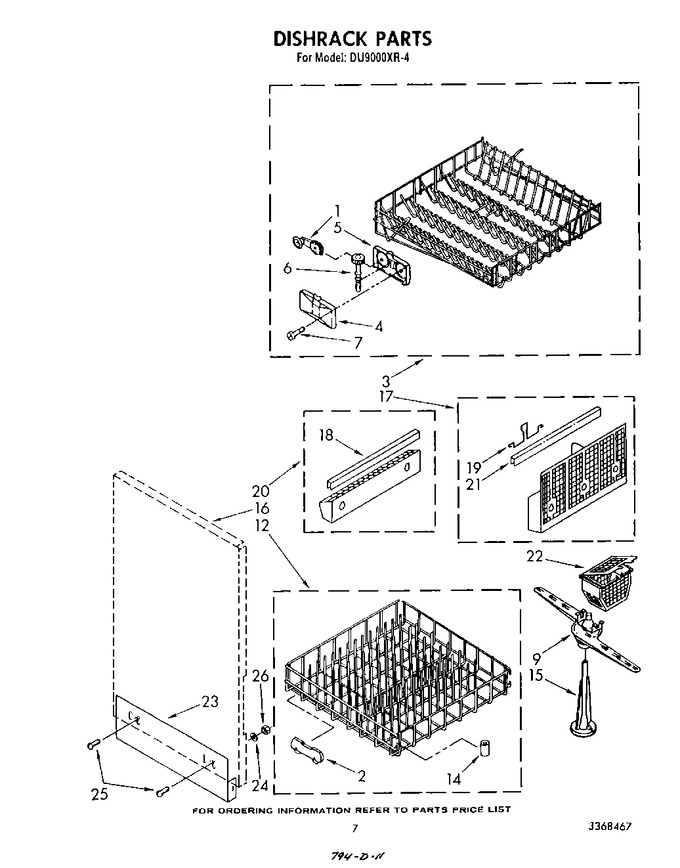

SELECT A DIAGRAM

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Heater, Pump And Lower Sprayarm


05 - Dishrack


06 - Pump And Motor


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	301120		Wheel & Axle Assembly (4)		Appelez-nous	-
2	4317933		Wheel & Shroud Assembly (4)   (Replaces: 3368747)				$ 43.80
3	W11169039		Dishrack, Upper   (Replaces: 3368078)			Immediately	$ 182.83
4	301066		Cover, Housing (2)				$ 0.96
5	301065		Housing, Gear (2)		Appelez-nous	-
6	301067		Warm, Dishrack (2)		Appelez-nous	-
7	WP9741232		Screw (8)   (Replaces: 301077)			Immediately	$ 4.56
9	303569		Spray Arm		Appelez-nous	-
12	W10311986		Dishrack, Lower   (Replaces: 3368823)			Immediately	$ 169.33
14	717970		Bumper (2)		Appelez-nous	-
15	300848		Tower		Appelez-nous	-
16	N/A		Panel, Reversible Side		Appelez-nous	-
17	304779		Silverware Basket		Appelez-nous	-
18	717528		Trim, Basket		Appelez-nous	-
19	300086		Handle, Basket		Appelez-nous	-
20	304781		Utinsil Basket Assembly		Appelez-nous	-
21	717528		Trim, Basket		Appelez-nous	-
22	3369353		Basket, Small Items		Appelez-nous	-
23	3367549		Panel, Lower Side		Appelez-nous	-
24	W11089212		Washer, Lower Side Panel Mounting (2)   (Replaces: 12035)				$ 8.70
25	9419621		Screw, Lower Side Panel Mounting (2)				$ 5.60
26	W10080180		Nut, Lower Side Panel Mounting (2)   (Replaces: 965176)				$ 12.13

    View Diagram in Separate Window       Print Part List
