SELECT A DIAGRAM

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Heater,, Pump And Lower Spray Arm


05 - Dishrack And Panel


06 - 3367443 Pump And Motor


07 - Wiring Harness

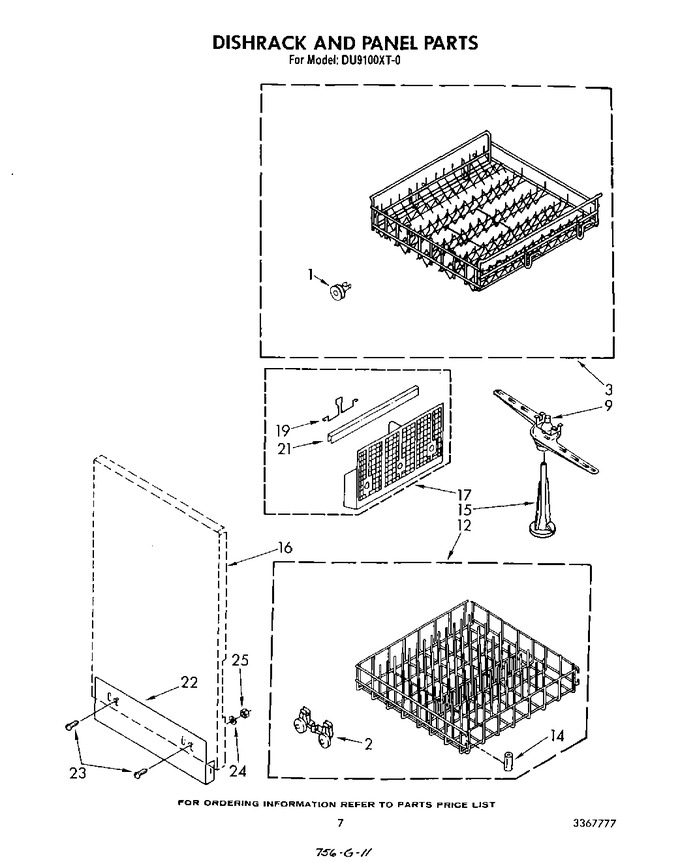

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300995		Wheel & Gear Assembly (4)		Appelez-nous	-
2	4317933		Wheel & Carrier Assembly (4)   (Replaces: 303991)				$ 43.80
3	W11169039		Dishrack, Upper   (Replaces: 3368648)			Immediately	$ 182.83
9	303569		Spray Arm		Appelez-nous	-
12	W10311986		Dishrack, Lower   (Replaces: 3368649)			Immediately	$ 169.33
14	WP3385142		Bumper (2)   (Replaces: 3368006)				$ 81.27
15	300848		Tower		Appelez-nous	-
17	304779		Silverware Basket		Appelez-nous	-
19	300086		Handle, Basket		Appelez-nous	-
21	717528		Trim, Basket		Appelez-nous	-
22	3367549		Panel, Lower Side		Appelez-nous	-
23	9419621		Screw (2)				$ 5.60
24	W11089212		Washer (2)   (Replaces: 12035)				$ 8.70
25	W10080180		Nut (2)   (Replaces: 965176)				$ 12.13

    View Diagram in Separate Window       Print Part List
