SELECT A DIAGRAM

01 - Cover Sheet

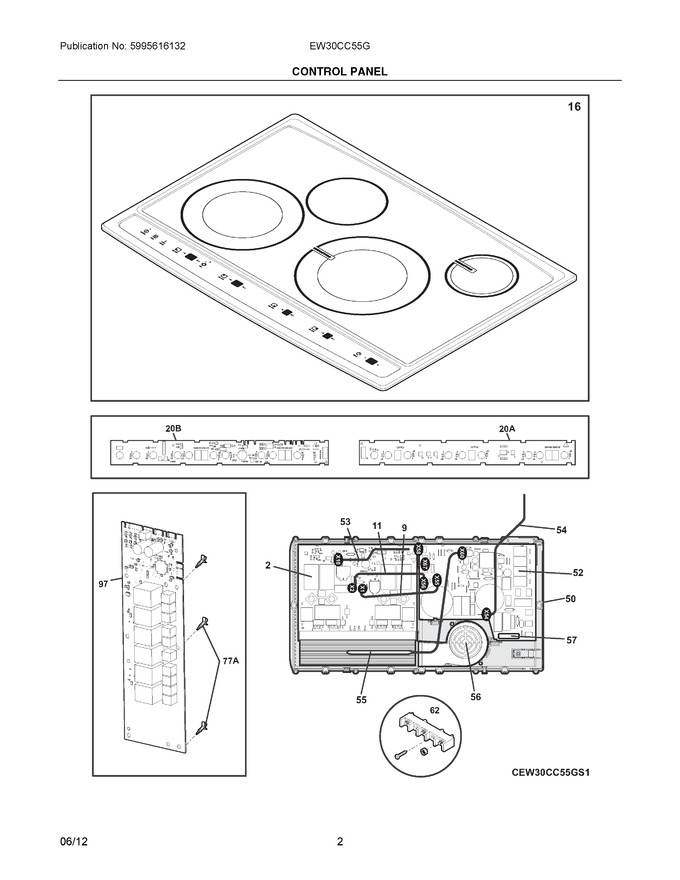

02 - Control Panel


03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	318347100		Generator, Circuit Board, (2), 2 Zone				$ 512.24
9	318052580		Power Cable Set, Generator, 6", Blue, To Filter, (2), X1/x8-x1/x55		Appelez-nous	-
11	318052579		Power Cable Set, Generator, 6", Black, To Filter, X2/x7-x2/x56		Appelez-nous	-
16	318384328		Maintop Assembly, Glass/steel, Black/stainless, W/touch Control				$ 756.91
50	318329620		Housing Assembly, Induction, Small, W/electronics				$ 765.03
52	318347010		Filter, Circuit Board, Small				$ 769.61
53	318348002		Communication Cable, Generator, 8", To Filter, X10/x58		Appelez-nous	-
54	318052578		Ground Wire, X54/6		Appelez-nous	-
55	318349910		Thermal Cut-out, Long		Appelez-nous	-
56	318346910		Cooling Fan Assembly, Small				$ 679.21
57	318373300		Fuse, Fast Blow, 20a				$ 59.54
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
97	318388400		Board, Relay				$ 235.31
20A	318330724		Touch Control, Cook Zone, Rh, Electronic				$ 359.56
20B	318330844		Touch Control, Cook Zone, Lh, Electronic				$ 317.81
77A	316114100		Spacer				$ 60.96
NI	318083096		Harness, Wiring, To Controls				$ 56.85
NI	318231878		Harness, Wiring, 3 Wire		Appelez-nous	-
NI	318231883		Harness, Wiring, Ground		Appelez-nous	-
NI	5304400192		Retainer, Wiring		Appelez-nous	-
NIA	5303323139		Screw, 10-24 X 0.906				$ 13.46
NIB	316205500		Nut, 10-32   (Replaces: 5303323144)				$ 11.34

    View Diagram in Separate Window       Print Part List
