SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

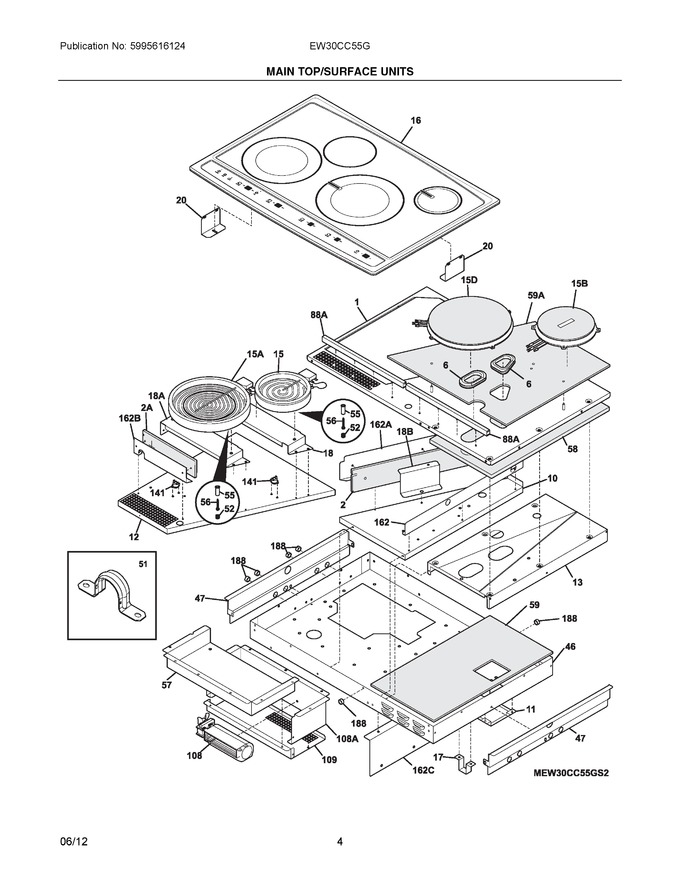

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318329006		Panel, Carrier		Appelez-nous	-
2	318346020		Insulation, Housing, Diagram		Appelez-nous	-
6	318392200		Ring, Gasket, (4)		Appelez-nous	-
10	318381730		Deflector, Heat		Appelez-nous	-
11	318381731		Deflector, Air		Appelez-nous	-
12	318381700		Shield, Heat, Base		Appelez-nous	-
13	318381726		Deflector, Heat		Appelez-nous	-
15	318178110		Element, Surface, 6", 1200w, (2), Radiant   (Replaces: 318198830)			Immediately	$ 122.86
16	318384322		Maintop Assembly, Glass/steel, Black/stainless, W/touch Control				$ 722.95
17	318367801		Bracket, Cable		Appelez-nous	-
18	318381800		Bracket, 6" Element		Appelez-nous	-
20	318121902		Bracket, Retainer				$ 47.03
46	318354044		Box, Burner		Appelez-nous	-
47	318345151		Deflector, Air		Appelez-nous	-
51	318389600		Bracket, Conduit Mtg.				$ 12.76
52	5303317177		Spring, Element Mtg.				$ 12.74
55	5303317178		Spacer, Element				$ 2.42
56	5304401490		Screw, 6-18 X 1, (2)		Appelez-nous	-
57	318381612		Box, Service		Appelez-nous	-
58	318330505		Insulation, Service Panel		Appelez-nous	-
59	318346220		Insualtion, Housing, Lower		Appelez-nous	-
108	318073032		Motor, Blower				$ 232.10
109	318380802		Cover, Blower		Appelez-nous	-
141	318005224		Switch, Thermal Cutout, (2)				$ 54.01
162	318161435		Deflector, Rh		Appelez-nous	-
188	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
108A	318380704		Bracket, Blower		Appelez-nous	-
15A	5304533520		Element, Surface, 6"/9", 1400/3000w, Radiant   (Replaces: 316465001)			Immediately	$ 90.14
15B	318329200		Element, Induction Coil, 145mm, Rear		Appelez-nous	-
15D	318329203		Element, Induction Coil, 260mm, Rh Front		Appelez-nous	-
162A	318161436		Deflector, Diagram		Appelez-nous	-
162B	318161430		Deflector, Front		Appelez-nous	-
162C	318161451		Deflector, Front		Appelez-nous	-
18A	318381810		Bracket, 9" Element		Appelez-nous	-
18B	318381900		Bracket, Carrier		Appelez-nous	-
2A	318346030		Insulation, Housing, Interior		Appelez-nous	-
59A	318346231		Insualtion, Housing, Element		Appelez-nous	-
88A	318392010		Gasket, Cooktop, (2)		Appelez-nous	-
NI	5303300265		Screw, 8-18 X 1/2, Silver, (4)				$ 15.17
NI	5304415832		Screw, 8-18 X 0.406		Appelez-nous	-
NI	134178901		Screw, 8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303288566		Screw, 8 X 1/4, (6)   (Replaces: 5303323130)				$ 2.12
NI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 174.43
NI	318199487		Harness, Wiring, Main				$ 188.27
NI	318231860		Harness, Wiring, Ground		Appelez-nous	-
NI	318532100		Harness, Wiring		Appelez-nous	-
NI	318402307		Harness, Wiring, Communication				$ 45.15
NI	08008009		Bushing, Nylon, Snap		Appelez-nous	-
NI	316459400		Pad, Cleaning		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	08016432		Screw, Truss Head, 8-18 X 0.375		Appelez-nous	-
NIA	318052598		Wire Harness, Blower		Appelez-nous	-
NIA	318231872		Harness, Wiring, Thermostat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
