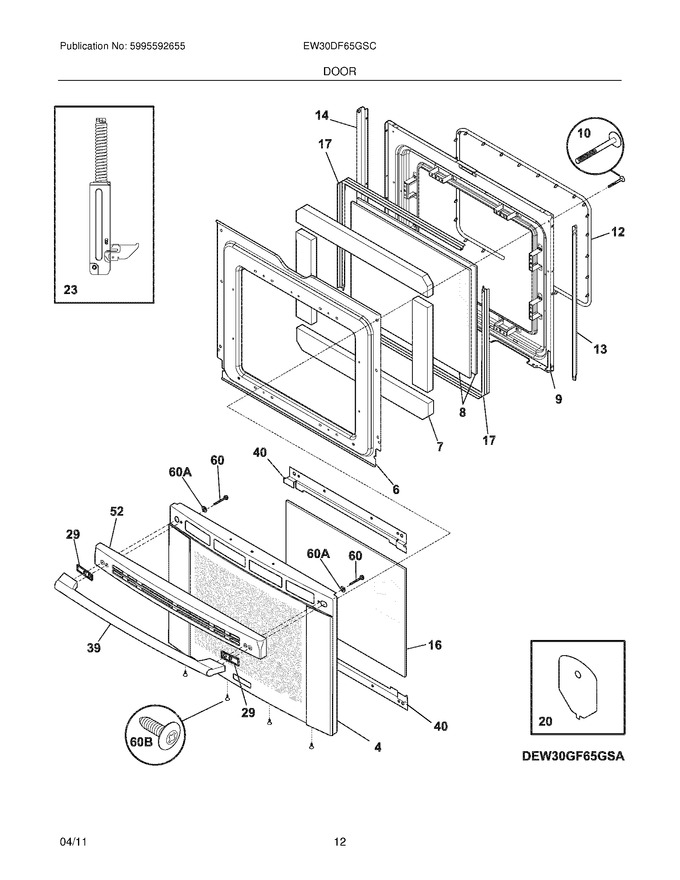

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316538311		Panel Assembly,door Glass ,w/badge ,outer,w/trim & Tape				$ 237.95
6	316503701		Shield-wool		Appelez-nous	-
7	316510400		Insulation,oven Door				$ 72.40
8	316503300		Glass,door ,inner ,(2)				$ 166.84
9	316503501		Liner,oven Door ,cobalt				$ 130.31
10	316516801		Screw,truss Hd ,10-24 X 3.5 ,(2)				$ 10.92
12	316403102		Seal,oven Door				$ 86.40
13	316503102		Trim,door Filler ,black ,rh		Appelez-nous	-
14	316503103		Trim,door Filler ,black ,lh		Appelez-nous	-
16	316503400		Glass,door ,airwash				$ 73.92
17	5304504249		Spacer,door Glass ,(2)   (Replaces: 316502201)				$ 19.13
20	316533801		Plate,distribution ,load			Immediately	$ 5.67
23	316508700		Hinge Assembly,door ,blue ,(2)				$ 151.73
29	316505401		Spacer,handle ,gray ,(2)				$ 18.17
39	241761001		Handle,door ,stainless		Appelez-nous	-
40	316517401		Bracket,airwash Glass ,(2)		Appelez-nous	-
52	316535302		Cap,door ,stainless				$ 211.00
60	316433303		Screw,handle Mtg ,10-24 X 2.188 ,(2)   (Replaces: 316513300)			Immediately	$ 31.17
60A	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316525700		Screw,hinge Mtg ,10-32 X 5/16 ,(4)				$ 8.56
NI	316433607		Label,anti-tip		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
