SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner

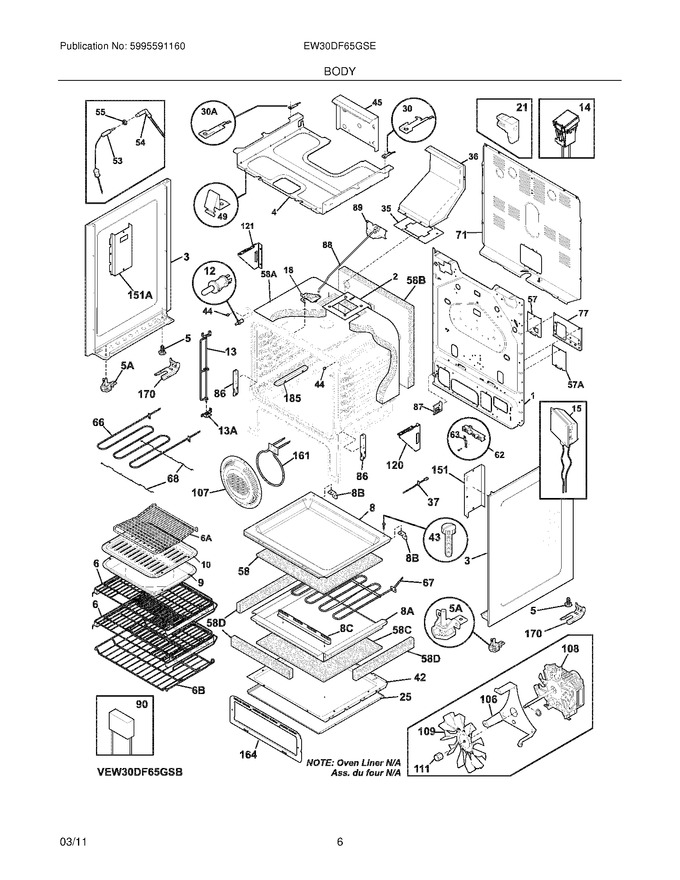

07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316504500		Back,main		Appelez-nous	-
2	316525800		Brace,oven Top		Appelez-nous	-
3	316400124		Panel,bodyside ,stainless ,rh				$ 141.49
3	316400125		Panel,bodyside ,stainless ,lh				$ 149.00
4	316505300		Box,burner		Appelez-nous	-
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316571800		Rack Assembly,w/glides   (Replaces: 316508200)				$ 290.93
8	316505602		Panel,cobalt ,oven Bottom				$ 158.06
9	316081901		Pan,broiler ,cobalt Blue				$ 74.32
10	316082001		Insert,broiler Pan ,cobalt Blue				$ 53.09
13	316529004		Lever Assembly,rack Sensing		Appelez-nous	-
21	316408000		Clip,bodyside				$ 18.20
25	316505900		Shield,lower ,bake		Appelez-nous	-
30	316217700		Bracket,hinge ,rh ,main Top				$ 13.42
35	316542102		Gasket-flue   (Replaces: 316542100)				$ 12.13
36	316507901		Flue,cobalt		Appelez-nous	-
42	316407700		Shield,wool ,lower				$ 131.19
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 9.93
44	316517600		Spacer,oven Door				$ 12.05
45	316508501		Shield,flue		Appelez-nous	-
49	316540600		Clip,maintop Mtg ,(2)				$ 2.21
55	316247700		Nut,mounting				$ 18.20
57	316451100		Cover,access ,w/ Holes		Appelez-nous	-
58	316509500		Insulation,bake Element				$ 45.09
63	316542600		Plate,grounding Strap		Appelez-nous	-
68	316429200		Support,element ,broil ,(2)		Appelez-nous	-
71	316422306		Shield,rear Wall		Appelez-nous	-
77	316451200		Plate,mounting ,safety Valve		Appelez-nous	-
86	316580700		Receptacle,hinge ,(2)   (Replaces: 316508600)			Immediately	$ 30.47
87	316451001		Bracket,harness ,mini Oven		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316232702		Rod,auto Latch   (Replaces: 316232700)				$ 12.89
106	316404100		Bracket,motor Mtg.				$ 63.70
107	316026702		Cover,fan				$ 67.94
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
120	316279204		Bracket,stiffener ,rh		Appelez-nous	-
121	316279205		Bracket,stiffener ,lh		Appelez-nous	-
151	316404600		Shield,bodyside				$ 49.30
164	316450302		Trim,front ,mini Oven		Appelez-nous	-
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112004)			Immediately	$ 18.91
185	316112900		Shield,thermo Bulb		Appelez-nous	-
13A	316543000		Bracket,lever ,lower ,rack Sensing				$ 20.80
30A	316217701		Bracket,hinge ,lh ,main Top				$ 13.00
57A	316451101		Cover,access ,w/o Holes		Appelez-nous	-
58A	316403700		Insulation,oven Wrapper				$ 304.06
58B	316403601		Insulation,oven Back				$ 59.06
58C	316509600		Insulation,lower Shield		Appelez-nous	-
58D	316509700		Insulation,oven Bottom				$ 60.25
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
6A	318219500		Rack,broiler Pan		Appelez-nous	-
6B	316496205		Rack,oven				$ 134.67
8A	316505701		Base,bake Element				$ 244.44
8B	316506000		Bracket,support ,oven Bottom ,(2)				$ 4.55
8C	316505801		Support,element				$ 25.48
F108	5304467898		Motor,fan   (Replaces: 316415800)			Immediately	$ 225.67
F12	316445500		Switch,oven Light ,door Frame			Immediately	$ 54.74
F14	316508301		Switch Assembly,rack Sensing				$ 207.03
F15	5304523863		Lamp,oven ,(2) ,halogen   (Replaces: 316510700)			Immediately	$ 69.01
F151	316404601		Shield,bodyside				$ 21.27
F161	316211603		Element,convection Fan ,350 W				$ 255.86
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
F170	316541700		Template,anti-tip		Appelez-nous	-
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F37	316490000		Probe,oven Temp			Immediately	$ 58.30
F53	5304504202		Probe,meat Temp   (Replaces: 318601302)			Immediately	$ 106.19
F54	316536902		Receptacle,probe				$ 143.59
F62	5303935271		Terminal Block Kit				$ 73.56
F66	316203301		Element,broil			Immediately	$ 182.39
F67	316505500		Element,bake ,3500w   (Replaces: 316505501)			Immediately	$ 259.25
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
F90	316539900		Filter,noise ,lock Motor ,suppressor				$ 68.61
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	316542200		Insulator		Appelez-nous	-
NI	316512565		Harness-main		Appelez-nous	-
NI	316539800		Retainer,wire				$ 14.41
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021132		Screw,8-18 X 11/16 ,black ,(3)				$ 12.89
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316279600		Screw,bracket ,stiffener ,(4)				$ 12.05
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316534100		Washer,flat ,meat Probe				$ 14.89
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03

    View Diagram in Separate Window       Print Part List
