View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard

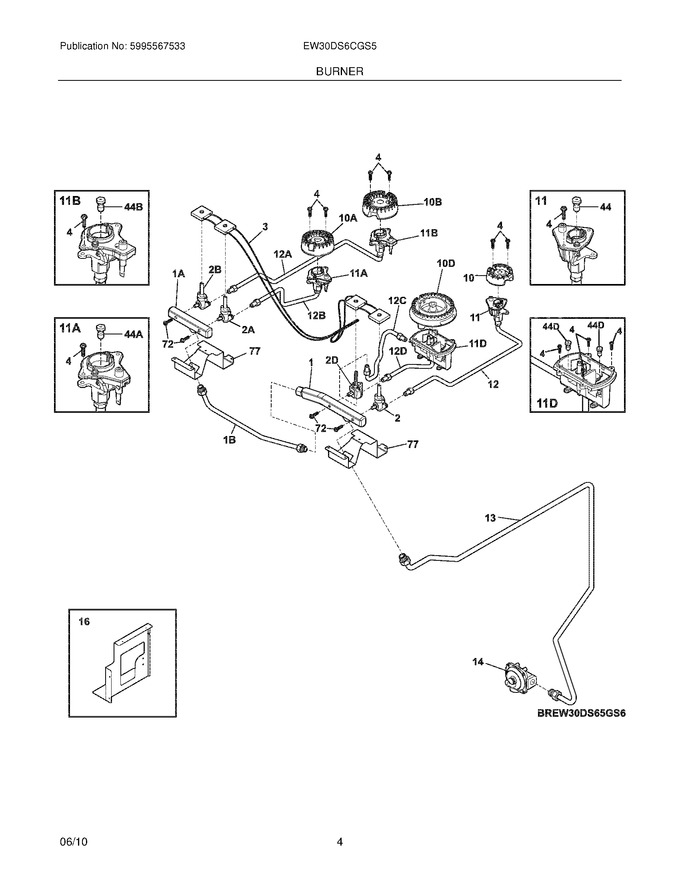

05 - Burner
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318907000 | Manifold,pipe ,rh |
|
$ 119.54 | |||||
| 4 | 316240600 | Screw,hex Wash ,6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 12.13 | ||||
| 12 | 318901100 | Tubing,5k Burner ,rh Rear |
|
- | |||||
| 13 | 318902300 | Tubing,manifold Supply |
|
$ 117.11 | |||||
| 16 | 318590003 | Panel,regulator Mtg. |
|
$ 51.50 | |||||
| 72 | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| 77 | 318906711 | Bracket,manifold ,(2) |
|
- | |||||
| 12A | 318901300 | Tubing,14k Burner ,lh Rear |
|
$ 34.02 | |||||
| 12B | 318901500 | Tubing,9.5k Burner ,lh Front |
|
$ 32.92 | |||||
| 12C | 318901700 | Tubing,18k Burner ,rh Front |
|
$ 34.49 | |||||
| 12D | 318901900 | Tubing,18k Burner ,rh Front |
|
$ 28.88 | |||||
| 1A | 318907200 | Manifold,pipe ,lh |
|
$ 115.03 | |||||
| 1B | 318902100 | Tubing,interconnect |
|
$ 490.04 | |||||
| F10 | 316438200 | Burner,sealed ,5k |
|
Immediately | $ 56.70 | ||||
| F10A | 316558300 | Burner,sealed ,9.5k |
|
Immediately | $ 52.45 | ||||
| F10B | 316438600 | Burner,sealed ,14k |
|
Immediately | $ 79.80 | ||||
| F10D | 316525401 | Burner,sealed ,dual ,18k |
|
$ 187.54 | |||||
| F11 | 316540800 | Ignitor/orifice Assy.,top Burner ,5k ,w/holder |
|
$ 11.20 | |||||
| F11A | 316540700 | Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder |
|
$ 11.15 | |||||
| F11B | 316543204 | Ignitor/orifice Assy.,top Burner ,front |
|
$ 12.33 | |||||
| F11D | 316525103 | Ignitor/orifice Assy.,top Burner ,18k ,w/holder |
|
$ 219.39 | |||||
| F14 | 316082904 | Regulator-pressure |
|
$ 588.12 | |||||
| F2 | 318387400 | Valve,top Burner ,5k |
|
$ 174.43 | |||||
| F2A | 318387401 | Valve,top Burner ,9.5k |
|
$ 166.56 | |||||
| F2B | 318387402 | Valve,top Burner ,14k |
|
$ 182.86 | |||||
| F2D | 316574901 | Valve,top Burner ,18k |
|
$ 89.51 | |||||
| F3 | 318232649 | Wiring Harness,w/igntr Switch |
|
$ 109.05 | |||||
| F44 | 316527504 | Orifice,top Burner ,5k |
|
$ 22.68 | |||||
| F44A | 316527500 | Orifice,top Burner ,9.5k |
|
$ 21.40 | |||||
| F44B | 316527511 | Orifice,top Burner ,14k |
|
$ 19.85 | |||||
| F44D | 316523509 | Orifice,top Burner ,center ,18k |
|
$ 20.69 | |||||
| F44D | 316523512 | Orifice,top Burner ,18k |
|
- | |||||
| FNI | 318199781 | Wiring Harness,ignitor |
|
$ 94.93 | |||||
| FNI | 318127445 | Lp Conversion Kit |
|
$ 142.43 | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 318064855 | Instruction Sheet,lp Conversion |
|
- | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 5303131801 | Screw, 10 X 3/8 |
|
- | |||||
| NI | 5303311306 | Screw,8-18 X 0.375 ,(4) |
|
- |
