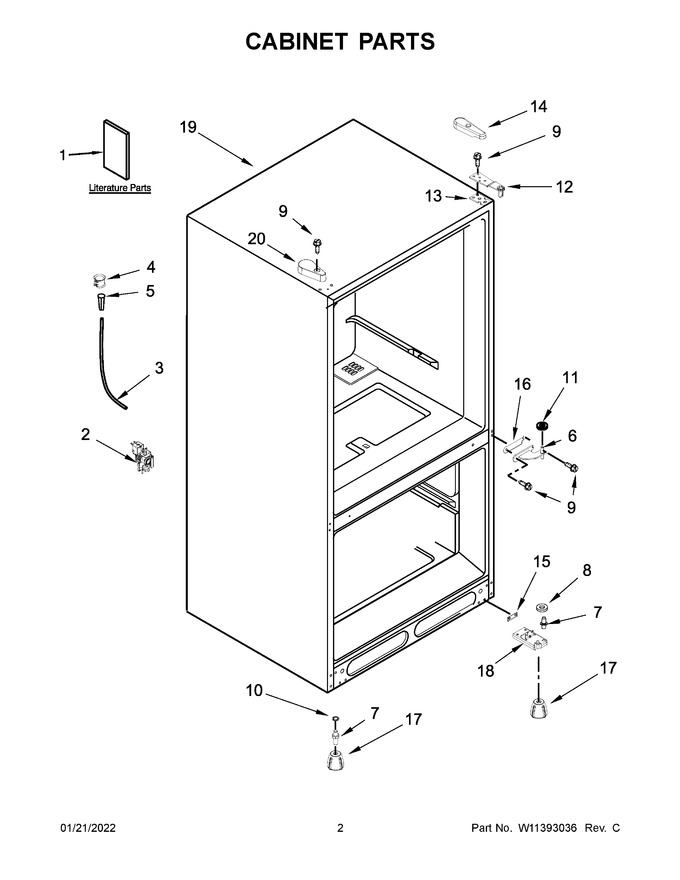

02 - Cabinet Parts


03 - Liner Parts


04 - Door Parts


05 - Shelf Parts


06 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11449055		Use And Care Guide		Appelez-nous	-
2	WPW10498976		Valve, Inlet   (Replaces: W10498976)			Immediately	$ 113.49
3	W11680400		Tube, Water   (Replaces: W10837812)			Immediately	$ 75.02
4	W10861184		Clamp, Tube   (Replaces: W10329003)				$ 56.48
5	4387491		Insert, Tube   (Replaces: 2181939)				$ 7.06
6	W11173998		Hinge, Center				$ 62.36
7	W11678964		Pin, Hinge (bottom)   (Replaces: W11183254)			Immediately	$ 7.07
8	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 9.79
9	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
10	R30039		Screw, Leveler		Appelez-nous	-
11	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 8.89
12	W11191773		Assembly, Top Hinge				$ 61.83
13	W10399311		Shim, Top Hinge				$ 13.91
14	W11467695		Cover, Hinge (white)		Appelez-nous	-
15	W11269192		Shim, Bottom Hinge   (Replaces: W10919908)			Immediately	$ 14.47
16	W11269182		Shim, Center Hinge   (Replaces: W11175787)				$ 14.48
17	W11545335		Leg, Leveler   (Replaces: W11176400)			Immediately	$ 14.02
18	W11580021		Assembly, Bottom Hinge   (Replaces: W11217747)			Immediately	$ 29.69
19	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
20	W11266884		Cover, Connector Box (white)		Appelez-nous	-
14A	W11467697		Cover, Hinge (black)		Appelez-nous	-
14B	W11467696		Cover, Hinge (grey)				$ 20.96
1A	W11429027		Energy Guide		Appelez-nous	-
20A	W11266885		Cover, Connector Box (grey)				$ 20.83
20B	W11266887		Cover, Connector Box (black)		Appelez-nous	-
