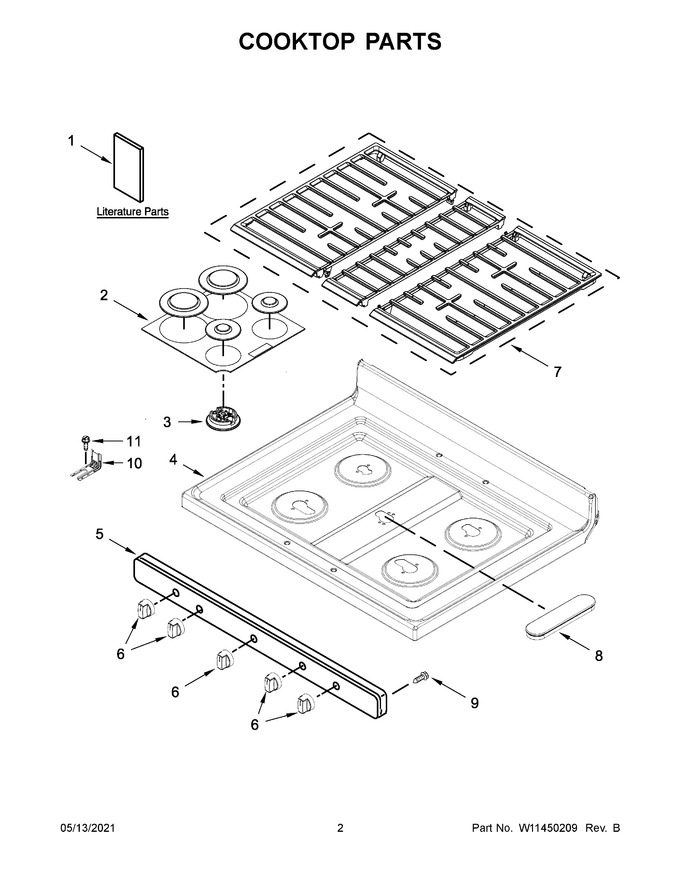

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11404103		Installation Instructions		Appelez-nous	-
2	W11834859		Burner Cap Kit (black (set Of 4))   (Replaces: W11352138)		Appelez-nous	-
3	W11435630		Spreader, Flame (left Front & Right Front)   (Replaces: W11352018)			Immediately	$ 70.62
4	W11454367		Cooktop (black)   (Replaces: W11418086)			Immediately	$ 364.91
5	W11165140		Panel, Manifold (stainless)   (Replaces: W11044911)				$ 310.07
6	W11159630		Knob, Control (stainless)   (Replaces: W11023139)			Immediately	$ 60.35
7	W11252165		Grate Kit (black (set Of 3))   (Replaces: W11090908)				$ 355.20
8	W11435660		Spreader, Flame   (Replaces: W11367086)			Immediately	$ 88.70
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16
10	W11447673		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.64
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
1A	W11404098		Use And Care Guide		Appelez-nous	-
1B	W11102748		Sheet, Tech (english)		Appelez-nous	-
1C	W11032799		Wiring Diagram		Appelez-nous	-
3A	W11435659		Spreader, Flame (left Rear)   (Replaces: W11352020)				$ 72.73
3B	W11435657		Spreader, Flame (right Rear)   (Replaces: W11352021)				$ 72.37
NI	W10849001		Harness, Main				$ 161.78
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 185.62
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	3196896		Clip, Wire		Appelez-nous	-
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
