SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

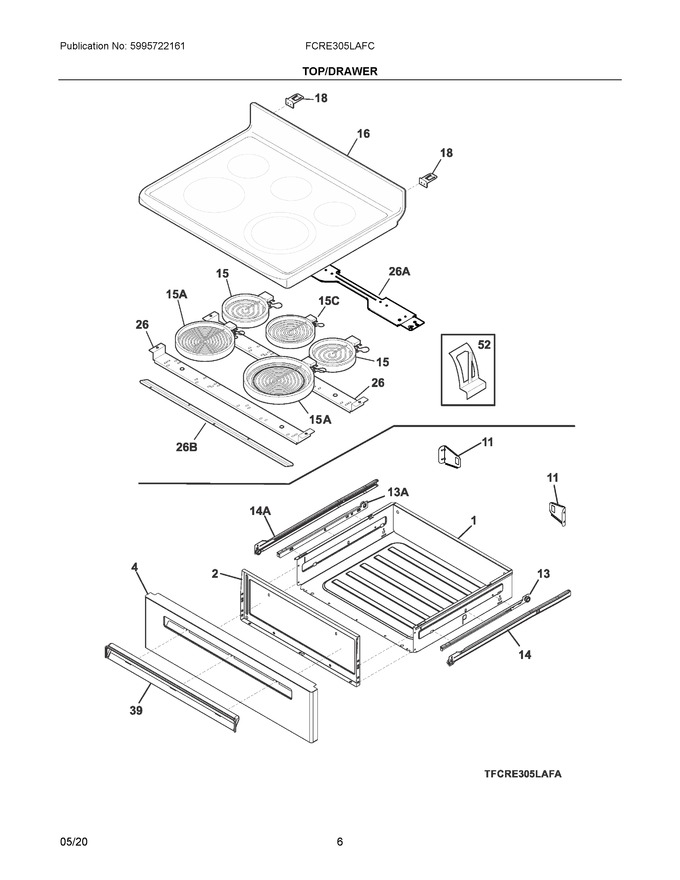

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304511827		Liner, Drawer		Appelez-nous	-
4	5304513993		Panel, Drawer				$ 182.46
11	5304517906		Bracket, Rear Support, (2)				$ 11.38
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 16.69
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 25.79
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	5304513835		Smoothtop, Assembly, Glass/steel, Black			Immediately	$ 683.96
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
26	5304512926		Channel, Element Support				$ 46.22
39	5304511565		Handle, Drawer, Grey, Insert				$ 62.19
43	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
52	316461700		Clip, Element Mtg				$ 12.05
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 28.97
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 47.98
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
15C	5304521951		Element, Warmer, 100 W			Immediately	$ 64.46
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
26B	316607600		Bracket, Chassis Support, Front				$ 52.33
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 13.46
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304522950		Harness, Surface		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.28

    View Diagram in Separate Window       Print Part List
