SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner

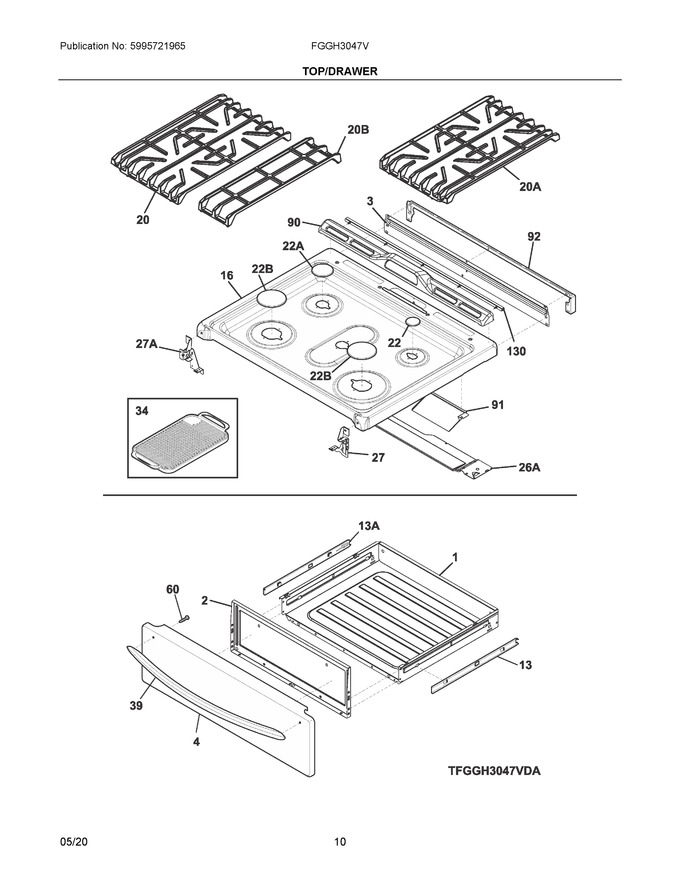

04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807108405		Drawer, Warmer				$ 125.44
2	5304527988		Liner, Warmer   (Replaces: 5304518924)			Immediately	$ 26.54
3	5304514133		Shield, Rear Wall, Upper				$ 34.89
4	5304517477		Panel, Drawer, Stainless				$ 182.46
13	316415000		Glide, Warmer, Inner Rh				$ 58.82
16	5304520919		Maintop, Assembly, Black				$ 200.96
20	5304521077		Grate, Burner, Black, Rh Side				$ 212.69
22	5304520370		Cap, Burner, Small, Black			Immediately	$ 15.62
27	5304514123		Bracket, Mounting, Rh, Cooktop				$ 13.65
34	5304495353		Griddle			Immediately	$ 166.84
39	5304532118		Handle, Door/drawer, Stainless   (Replaces: 5304518029)				$ 112.88
60	5303288572		Screw-handle Mtg		Appelez-nous	-
90	5304514122		Trim, Vent, Black, Rear				$ 54.60
91	5304514181		Deflector, Moisture, (2)				$ 10.63
92	5304520261		Rear Filler Kit, Fcfs Range, Black			Immediately	$ 163.81
130	808931802		Seal, Maintop, Silicone, Rear				$ 40.19
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 58.82
20A	5304521078		Grate, Burner, Black, Lh Side				$ 196.42
20B	5304521079		Grate, Burner, Black, Center				$ 201.73
22A	5304520371		Cap, Burner, Medium, Black			Immediately	$ 19.72
22B	5304520372		Cap, Burner, Large, Black			Immediately	$ 22.75
26A	5304514126		Bracket, Support, Rear, Chassis		Appelez-nous	-
27A	5304514124		Bracket, Mounting, Lh, Cooktop				$ 13.65
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
