View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

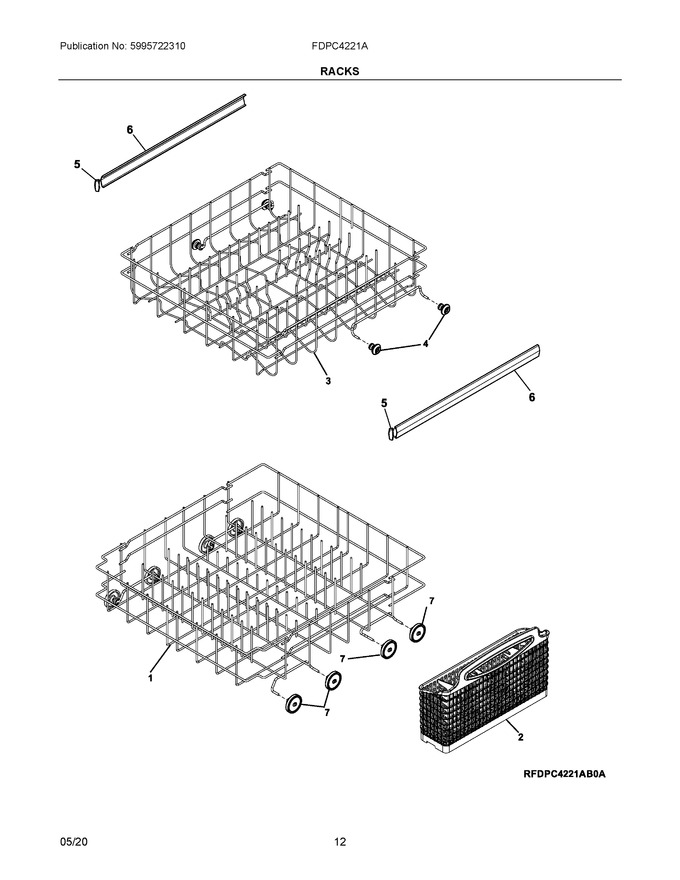

| 1 | 5304535379 | Rack Assembly, Lower, Grey (Replaces: 154331606) |
|
Immediately | $ 124.78 | ||||
| 2 | 5304509753 | Basket, Silverware |
|
Immediately | $ 36.87 | ||||
| 3 | 5304535380 | Rack Assembly, Upper, Grey (Replaces: 5304517201) |
|
Immediately | $ 150.71 | ||||
| 4 | 5304523190 | Wheel & Bushing Assy, Gray, Upper Rack |
|
Immediately | $ 14.74 | ||||
| 5 | 5304506510 | Cap, Rack Slide |
|
Immediately | $ 7.23 | ||||
| 6 | 154597801 | Slide, Rack, Upper, (2) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304521179 | Wheel & Bushing Assy, Lower Rack, (8) |
|
Immediately | $ 16.74 | ||||
| NI | 5304535550 | Nameplate, Rack Spacer, Grey (Replaces: 5304506527) |
|
$ 2.66 |
