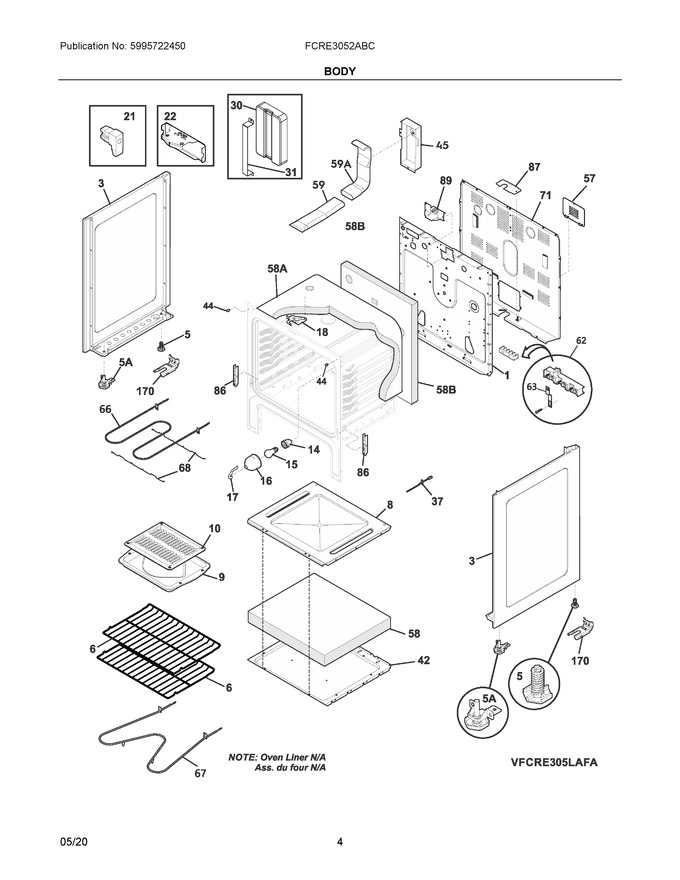

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401806		Panel, Main Back   (Replaces: 316401805)				$ 83.93
3	316400144		Panel, Bodyside, Black, Rh   (Replaces: 316400136)			Immediately	$ 134.69
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316496201		Rack, Oven			Immediately	$ 103.48
8	316400601		Panel, Oven Bottom				$ 125.87
9	316081900		Pan, Broileroptional Access0ry				$ 65.89
10	316082000		Insert, Broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle, Oven Light			Immediately	$ 56.10
15	316538904		Lamp, Oven Light			Immediately	$ 20.48
16	5304524341		Lens, Oven Light, Glass			Immediately	$ 14.18
17	316087500		Retainer, Lens				$ 56.70
18	5304520383		Cover, Front Frame		Appelez-nous	-
21	316408000		Clip, Bodyside				$ 18.20
22	316286300		Bracket-bodyside, (2)				$ 17.72
30	5304511083		Counterweight, Concrete Block		Appelez-nous	-
31	5304511084		Bracket, Concrete Block		Appelez-nous	-
37	316490000		Probe, Oven Temp			Immediately	$ 58.30
42	316400701		Shield, Wool, Lower				$ 162.30
44	316517600		Bumper, Front, Main				$ 12.05
45	316234100		Shield, Wire, Vent Tube				$ 70.16
57	316283600		Cover, Access				$ 12.50
58	316403805		Insulation, Oven Bottom		Appelez-nous	-
59	316208201		Tube, Oven Vent, Lower				$ 77.26
62	5303935271		Terminal Block Kit				$ 73.56
63	316278800		Plate, Grounding Strap		Appelez-nous	-
66	316203200		Element, Broil, 4 Pass			Immediately	$ 164.45
67	316075103		Element, Bake, 4 Pass			Immediately	$ 42.36
68	316404002		Support, Element, Broil				$ 8.75
71	316283204		Shield, Rear Wall				$ 56.12
86	316441300		Receptacle, Hinge				$ 21.97
87	316081200		Bracket, Cable Mtg		Appelez-nous	-
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 18.91
3A	316400145		Panel, Bodyside, Black, Lh   (Replaces: 316400137)			Immediately	$ 133.93
58A	316406605		Insulation, Oven Wrapper				$ 46.26
58B	316406505		Insulation, Oven Back				$ 27.30
59A	316208304		Tube, Oven Vent, Upper				$ 80.09
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg			Immediately	$ 15.08
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 12.05
NI	316282700		Screw, W/washer, 8-18				$ 9.93
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316210800		Plug, Hole, Light Switch				$ 10.63
NI	316506000		Bracket, Support, Oven Bottom, (2)				$ 4.55
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 13.46
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	5304520707		Harness, Wiring, Main				$ 137.02
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316542600		Plate, Grounding Strap		Appelez-nous	-
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIC	316541700		Template, Anti-tip		Appelez-nous	-
