SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard

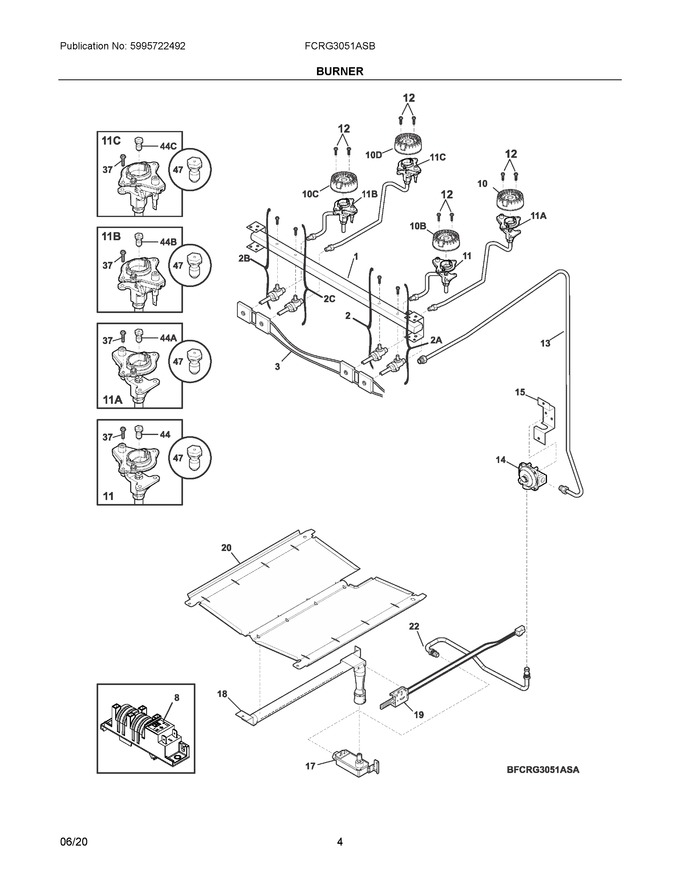

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304514361		Manifold, Pipe		Appelez-nous	-
2	5304507282		Valve, Top Burner, White Stem, 1500btu   (Replaces: 5304506550)			Immediately	$ 53.85
3	5304520897		Harness, Ignition		Appelez-nous	-
8	808608802		Spark Module			Immediately	$ 82.93
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	316536621		Ignitor/orifice Assy .,, Top Burner, Right Front, 16k, W/tube & Holder				$ 170.10
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
13	316489100		Tube, 3/8, Aluminum, Rgltr To Manf, With Fittings				$ 77.97
14	5304521339		Regulator, Pressure			Immediately	$ 105.42
15	316091600		Bracket, Regulator				$ 73.56
17	316572800		Valve, Safety				$ 302.59
18	316404400		Burner, Oven				$ 109.10
19	316489403		Ignitor, Bake   (Replaces: 5304508786)			Immediately	$ 113.15
20	5304519024		Baffle, Oven Burner			Immediately	$ 80.39
22	5304520704		Tube, Valve, 3/8				$ 37.16
37	316240600		Screw, Assy Mtg, (8), Ignitor/orifice			Immediately	$ 12.13
44	316527500		Orifice, Burner, 9.5k				$ 21.40
47	GRLP4		Lp Conversion Kit, W/instructions, Optional, Accessory			Immediately	$ 56.70
10B	316438400		Burner, Sealed, 17k			Immediately	$ 83.42
10C	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10D	316438000		Burner, Sealed, 12k				$ 67.81
11A	316536610		Ignitor/orifice Assy., Top Burner, Right Rear, 5k, W/holder, Tube			Immediately	$ 92.38
11B	316536602		Ignitor/orifice Assy., Top Burner, Left Front, 9.5k, W/holder, Tube				$ 132.62
11C	316536612		Ignitor/orifice Assy., Top Burner, Left Rear, 12k, W/holder, Tube				$ 116.52
2A	5304506547		Valve, Top Burner, Black Stem, 500btu				$ 69.01
2B	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 62.34
2C	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
44A	316527504		Orifice, Burner, 5k				$ 22.68
44B	316527508		Orifice, Top Burner, 16k				$ 18.43
44C	316527502		Orifice, Burner, 12k				$ 22.68
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304535516		Harness-ignitor   (Replaces: 316580601)				$ 68.28
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316498100		Shield, Wire, Safety Valve				$ 15.17
NI	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NIA	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIB	316257400		Bracket, Spark Module				$ 15.17

    View Diagram in Separate Window       Print Part List
