SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram

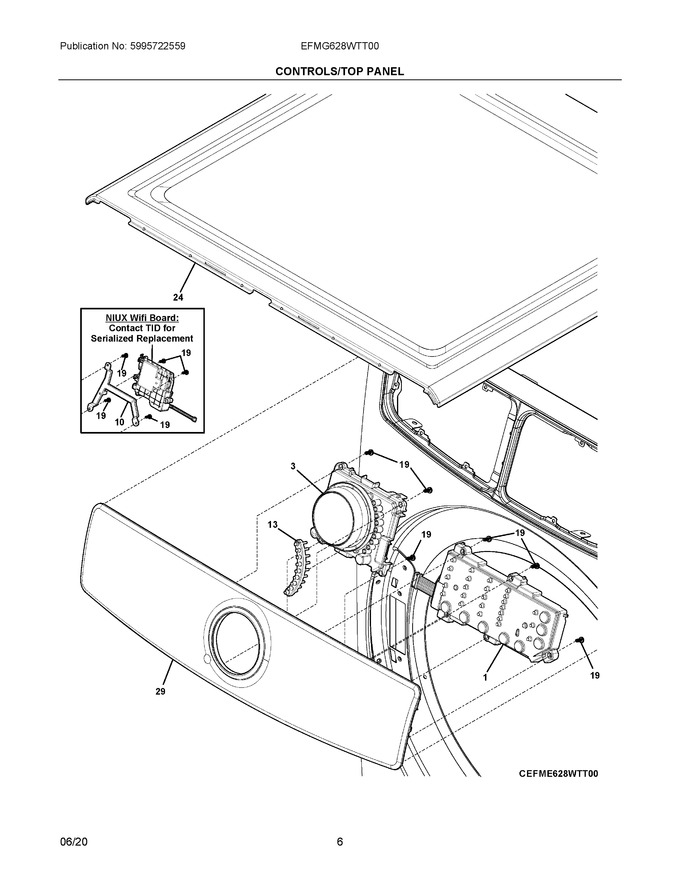

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304525169		Board Assy, Ui Programmed, Satellite, W/housing-screw		Appelez-nous	-
3	5304523956		Knob Assembly, Complete, W/boards		Appelez-nous	-
10	5304523958		Bracket, Adaptor, Niux Board		Appelez-nous	-
13	5304505064		Diffuser, Light				$ 15.23
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
24	5304505082		Top Panel, Titanium				$ 264.89
29	5304525170		Console Assembly, W/overlay		Appelez-nous	-
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
NI	5304521334		Harness, Wiring, Main				$ 173.99

    View Diagram in Separate Window       Print Part List
