View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Controls/induction Unit

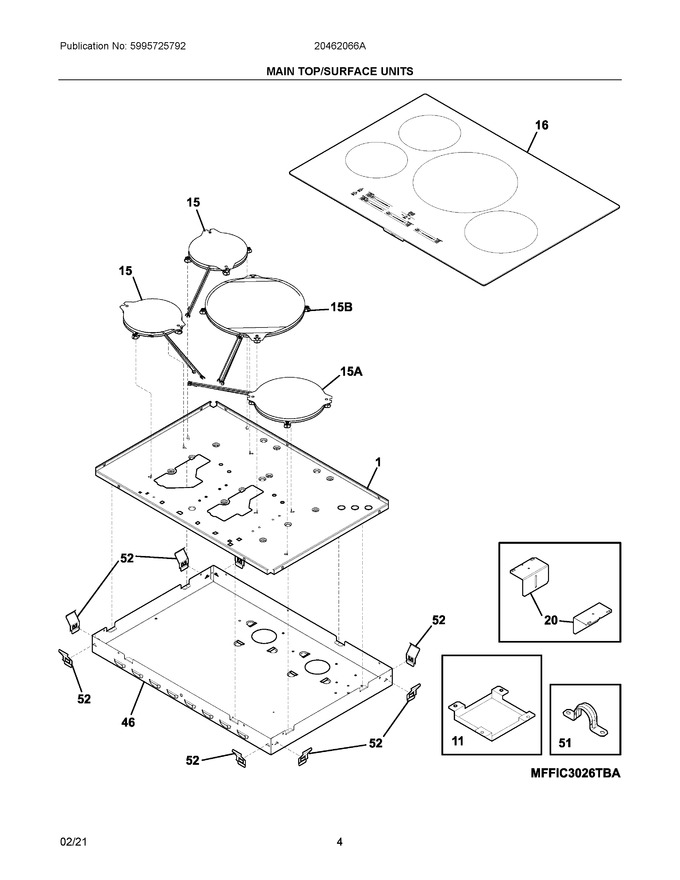

03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304514385 | Panel, Coil Mounting |
|
- | |||||
| 11 | 5304506079 | Deflector, Air |
|
- | |||||
| 15 | 357226271 | Element, Induction Coil, 140 Mm |
|
$ 137.82 | |||||
| 16 | 5304525240 | Maintop, Assembly, Black |
|
$ 682.58 | |||||
| 20 | 5304514345 | Bracket, Retainer, (2) |
|
- | |||||
| 46 | 5304514337 | Box, Burner |
|
- | |||||
| 51 | 318389600 | Bracket, Conduit Mtg. |
|
$ 12.76 | |||||
| 52 | 387174602 | Bracket, Spring, Cooktop Mtg. |
|
$ 5.67 | |||||
| 15A | 357226370 | Element, Induction Coil, 180 Mm |
|
Immediately | $ 118.11 | ||||
| 15B | 5304514341 | Element, Induction Coil, 260 Mm |
|
Immediately | $ 285.15 | ||||
| NI | 5304462994 | Screw, 8-32 X 5/16 |
|
- | |||||
| NI | 131243700 | Screw, B4, 2 X 9, 5 (Replaces: 330447900) |
|
$ 3.36 | |||||
| NI | 318163601 | Cleaner-cooktop |
|
$ 0.42 | |||||
| NIA | 131202300 | Screw, 8 X 5/8 (Replaces: 3131048) |
|
Immediately | $ 13.46 | ||||
| NIB | 5303307980 | Screw, 8-32 X 0.437, (4) |
|
Immediately | $ 14.18 |
